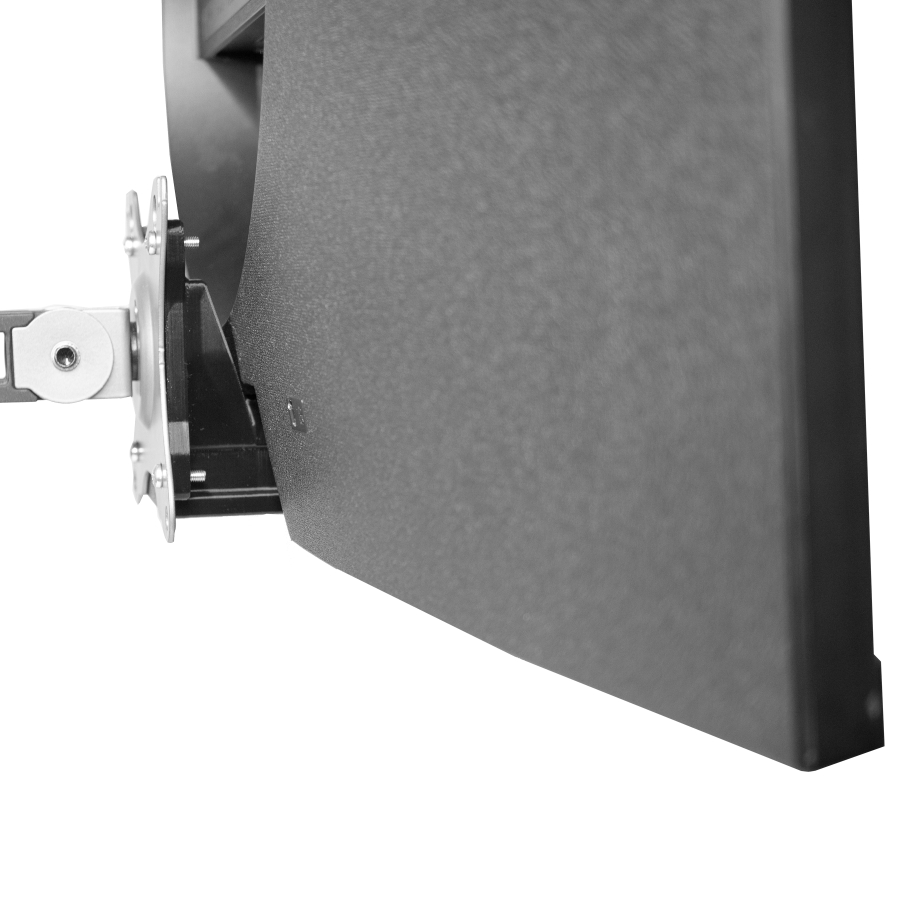

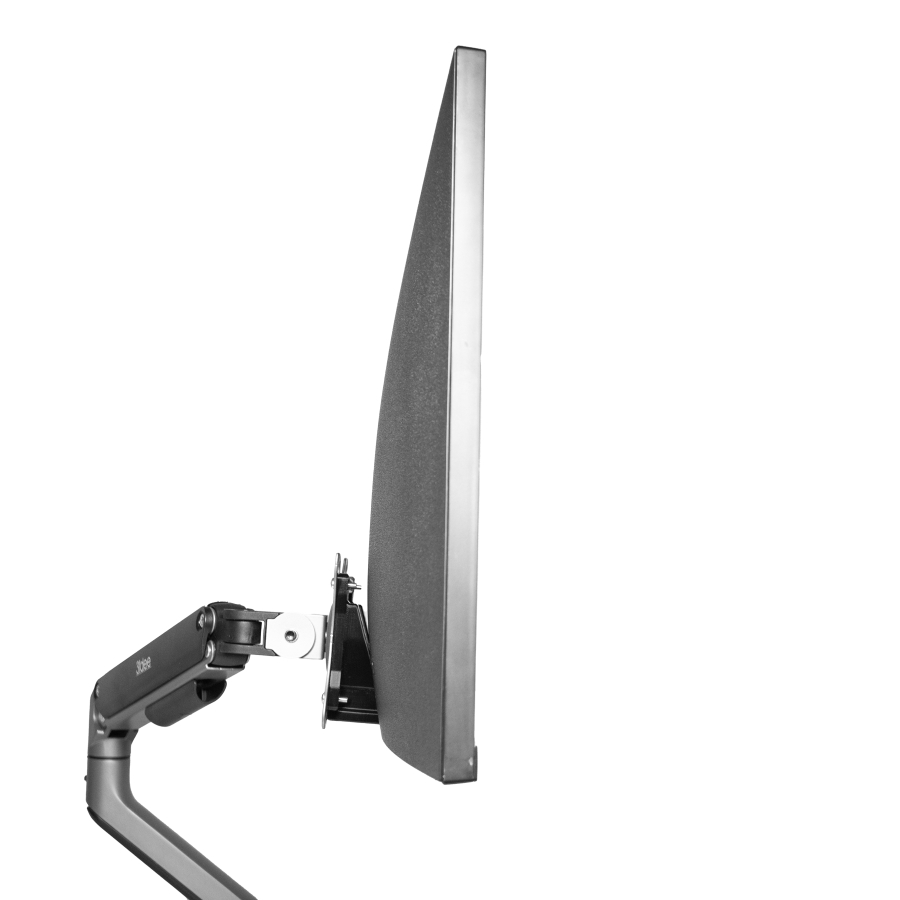

Easily mount your monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-
Flexibility: The construction and counterpart with fixing screw gives you the opportunity to flexibly adjust the height of the monitor on your monitor arm.
-

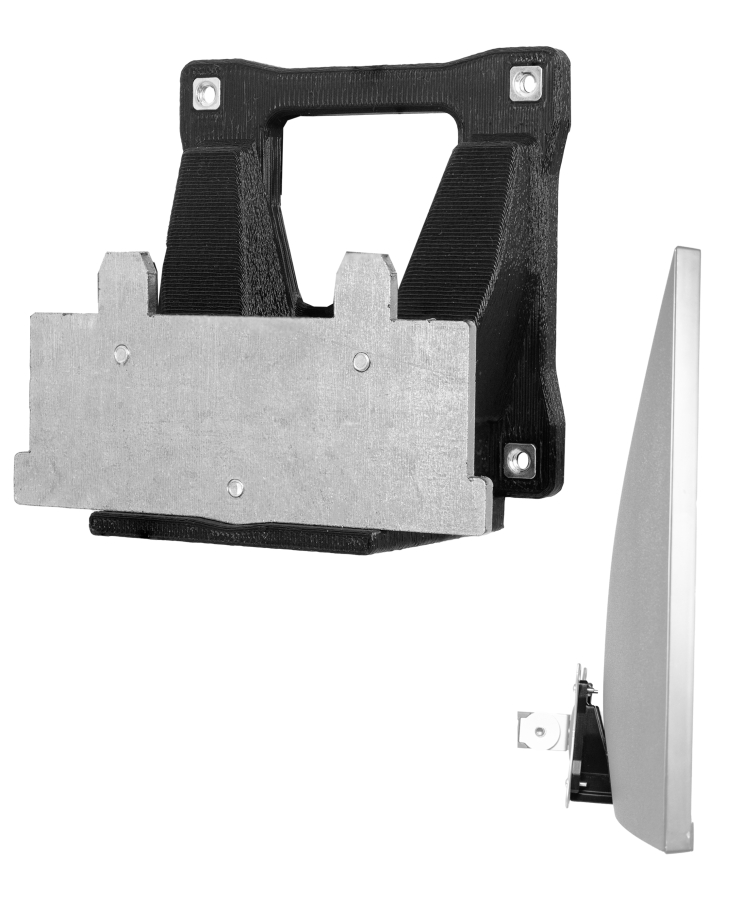

Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the Samsung C27T series adapters.
-
The 3idee quality promise: Our adapters have been tested for longevity and durability. However, if you are not satisfied with the product please reach out to us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following Samsung monitor series: C24T550FDR, LC24T550FDR, LC24T550FDU, C27T550FDR, C27T550FDU, C32T550FDR, LC27T550FDR, U32J590UQP.
For installation instructions and technical help, please visit help.3idee.eu or scan the QR code on the packaging of your adapter.
Item weight: 76g
Scope of delivery: 1x VESA adapter, 4x screws and 4x nuts for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders. The 3IDEE team is looking forward to your enquiry.
Table of contents
The VESA adapter is compatible with the following Samsung products(samsung.com): C24T550FDR, C27T550FDR Curved Monitor.
With the VESA adapter, you can easily attach your SAMSUNG brand monitor to a monitor arm with VESA hole pattern (75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels. (not included in the scope of delivery).
Here you can download the manual as a PDF
Step 1
Remove the base of your Samsung C27T550FDR Curved monitor.
We also recommend removing the round cover on the back of the monitor before you start mounting the VESA adapter.
Step 2

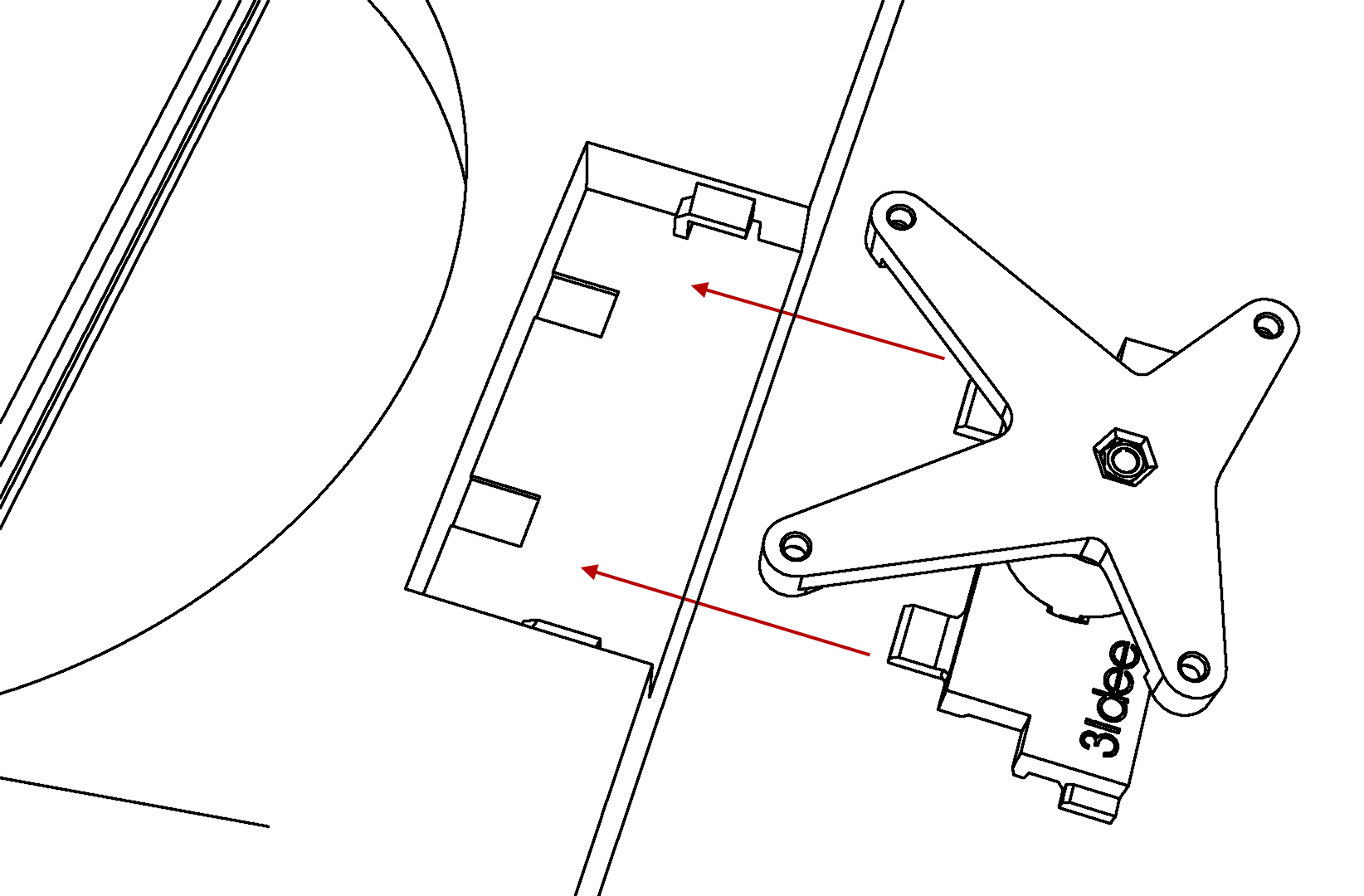

Now attach the 3idee VESA adapter to your Samsung monitor as shown. (Figure 1)
Figure 1
Step 3

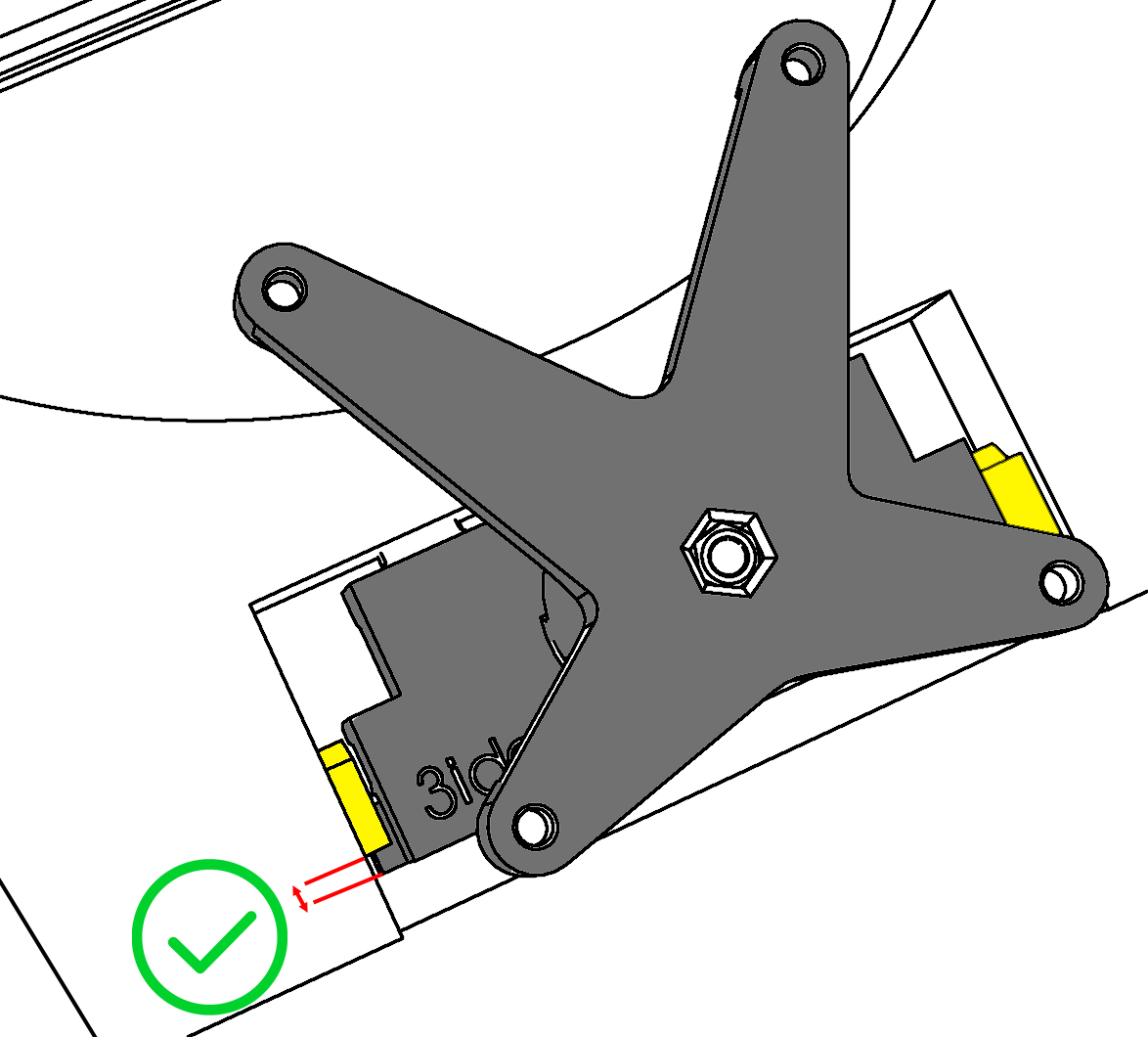

Once you slide the VESA adapter into the back of the monitor, you may notice that the side adapter guides stick out a bit from the monitor guides. (Figure 2)
That is correct. The VESA adapter is correctly inserted into your Samsung monitor as shown.
Figure 2
Step 4

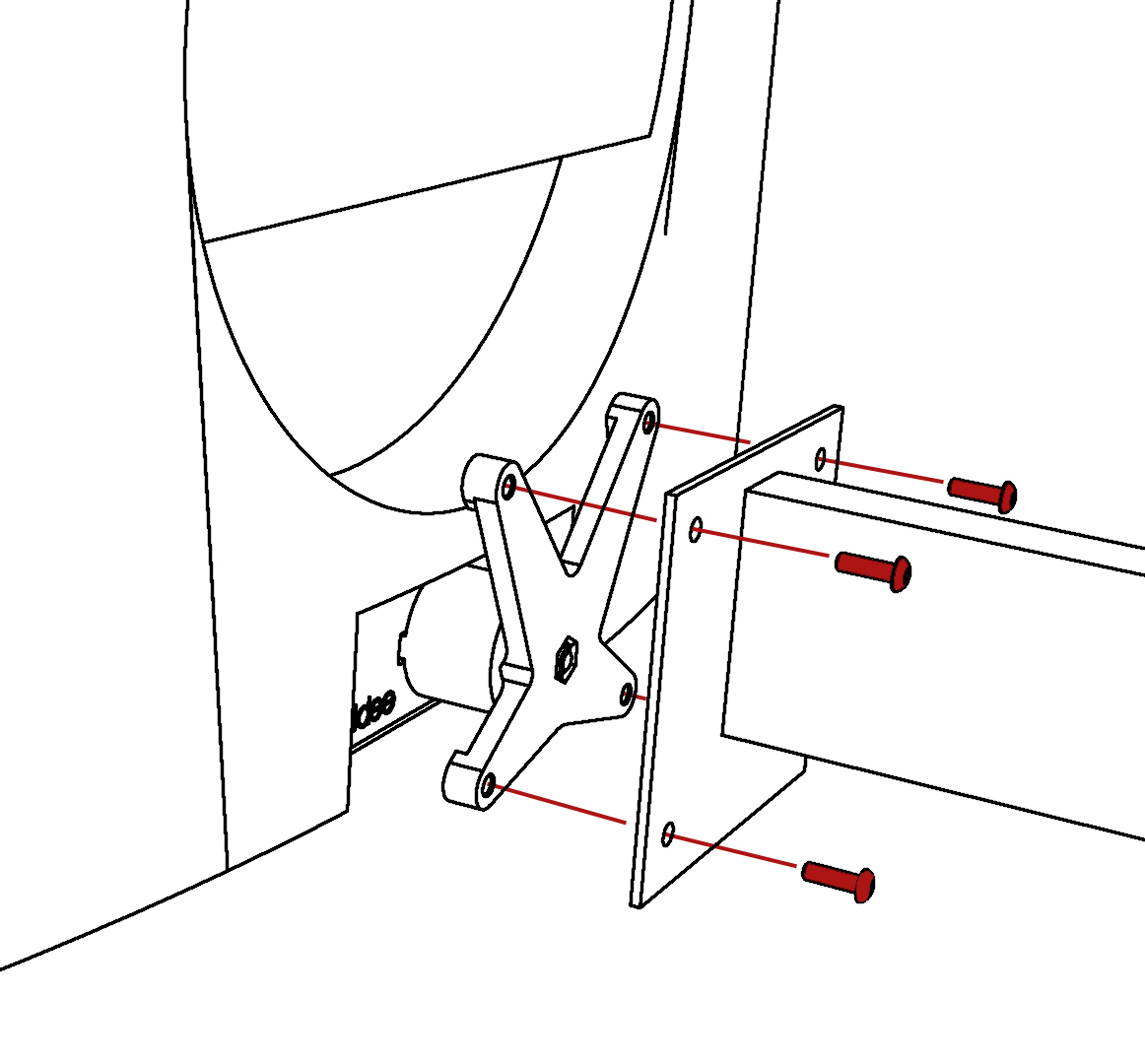

Now attach your Samsung monitor to your monitor arm with the 3idee VESA adapter. (Figure 3)
Figure 3
Step 5
Now please check if the monitor sits correctly in the VESA adapter. This should look something like the picture. (Figure 4)
There is a little space at the marked position. This is correct.
Figure 4
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality and extremely impact-resistant special polylactide (PLA) plastic. This PLA differs from standard PLA by its high mechanical properties. It is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of about 45°C-55°C and is therefore not suitable for use around direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
