Easily mount your HP monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-

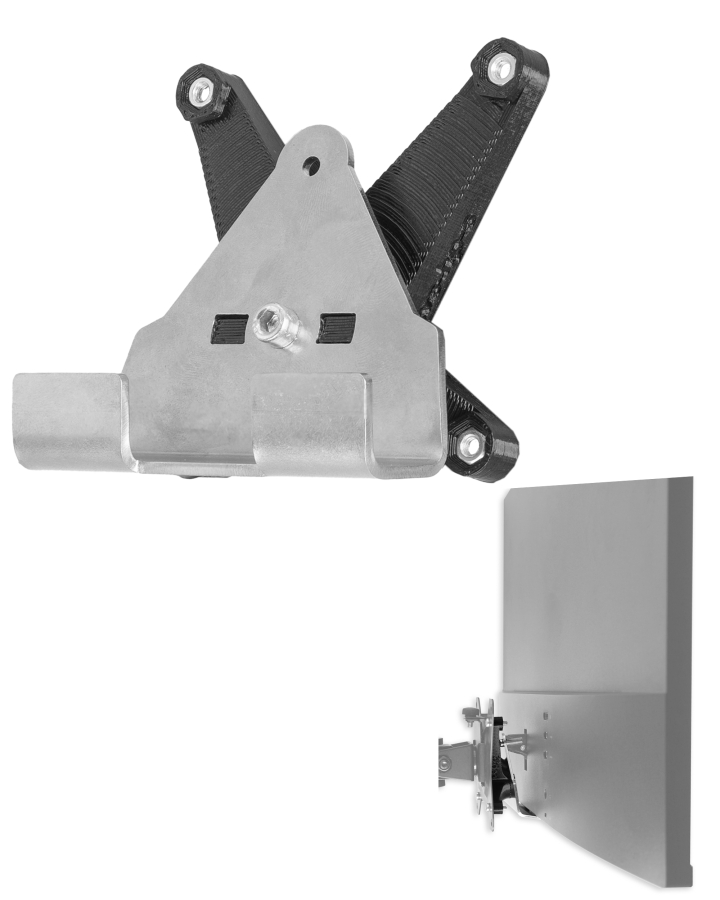

Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes.
-
The 3idee - Quality Promise: Our products have been tested for longevity and durability. However, if you are not satisfied with the product, please contact us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following HP monitor series: Envy 27s
You can find the installation instructions and technical help at www.help.3idee.eu or scan the QR code on the packaging of your adapter.
Scope of delivery: 1x VESA adapter incl. nuts, 4x screws for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders.
The 3IDEE team is looking forward to your enquiry.
Table of contents
The VESA adapter is compatible with the following products from hp (hp.com): ENVY 27s

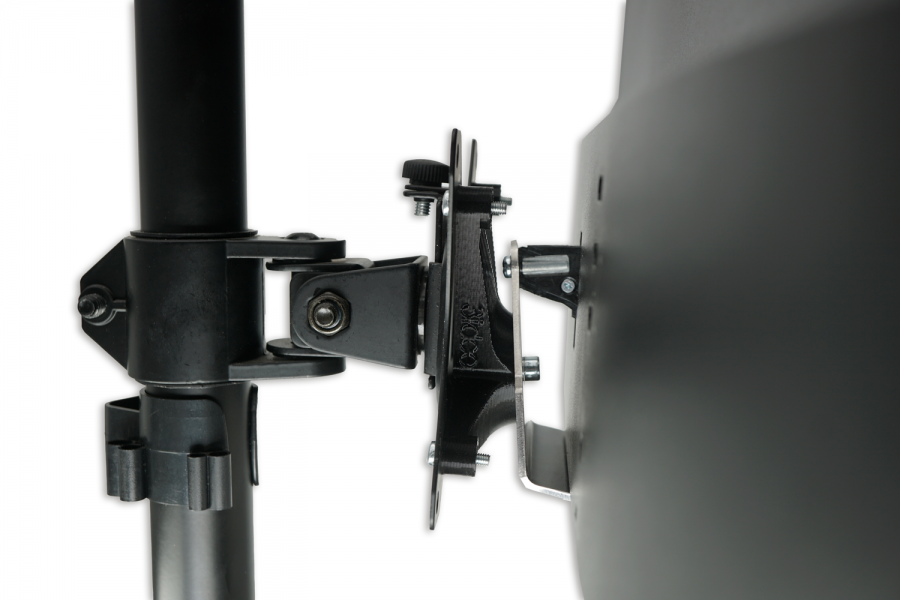

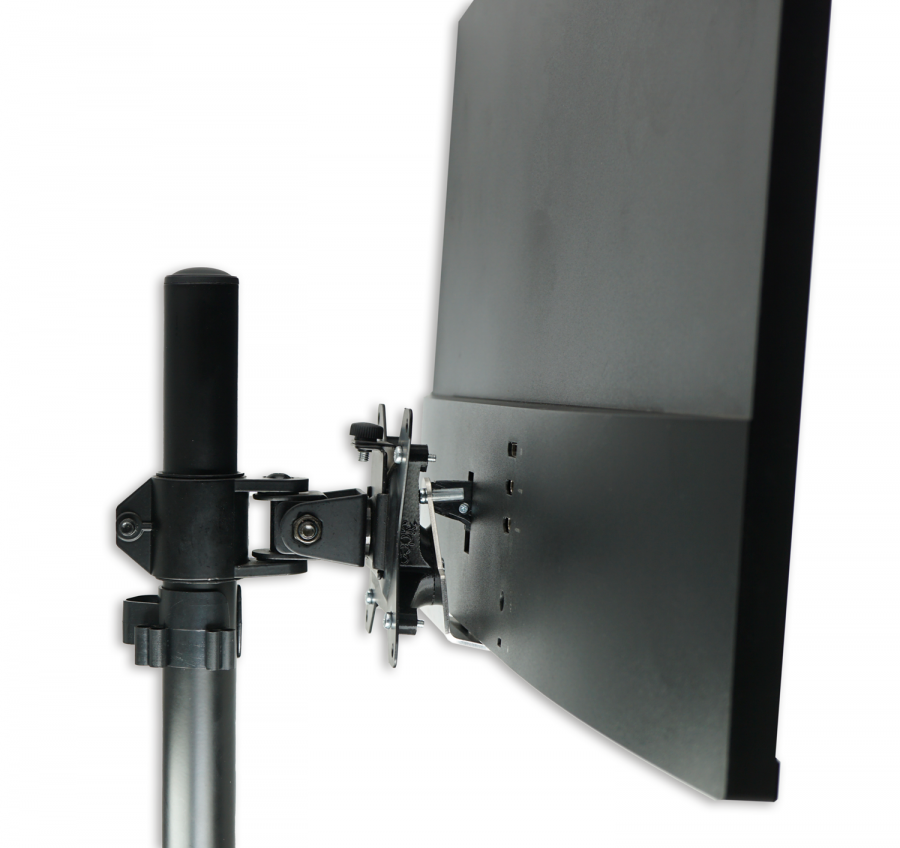

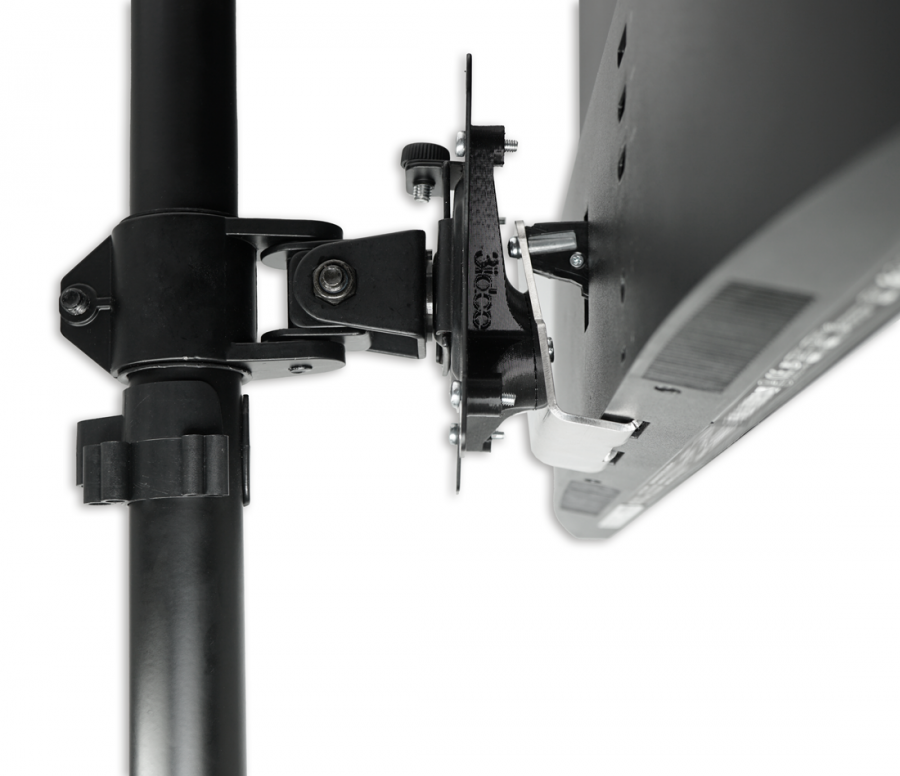

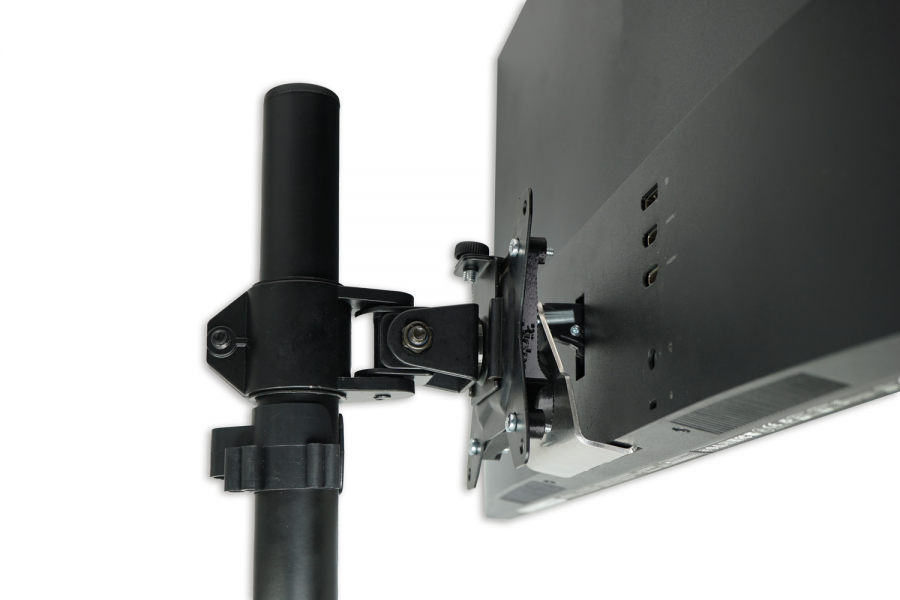

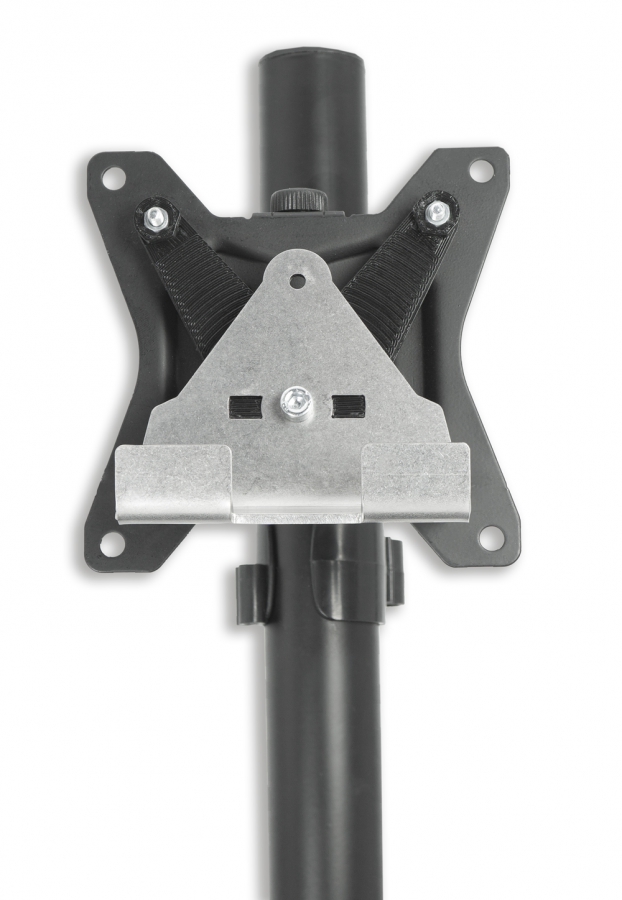

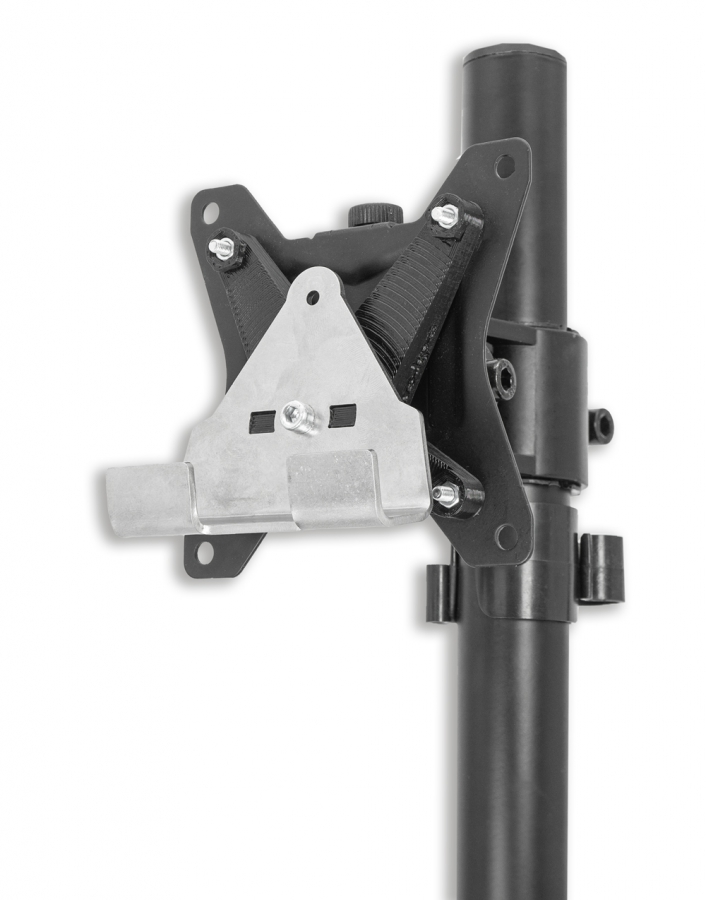

The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Step 1
Remove the base of your monitor if it is already attached.
Step 2

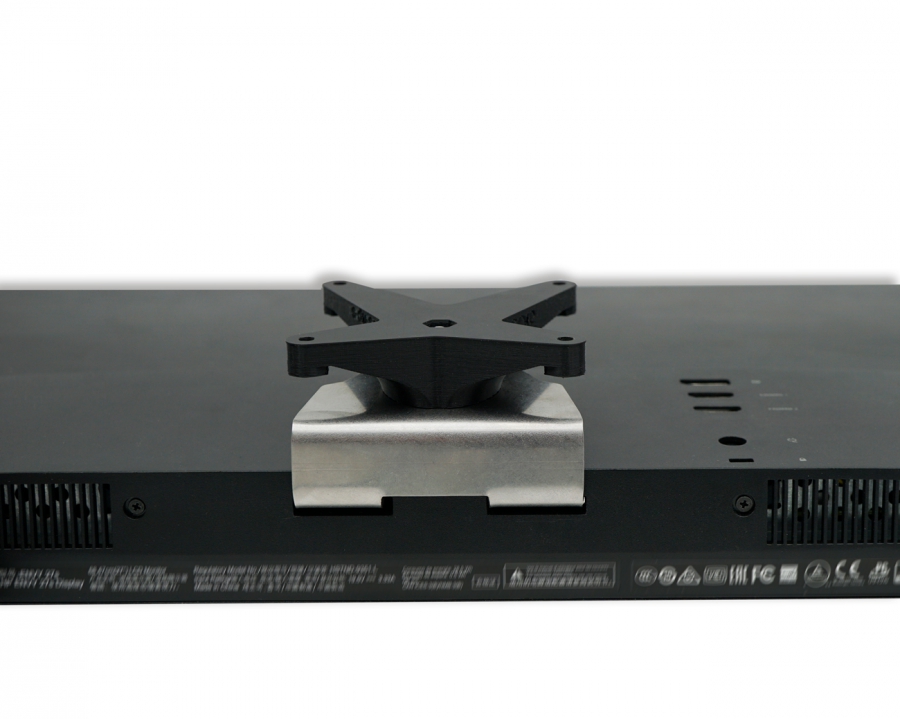

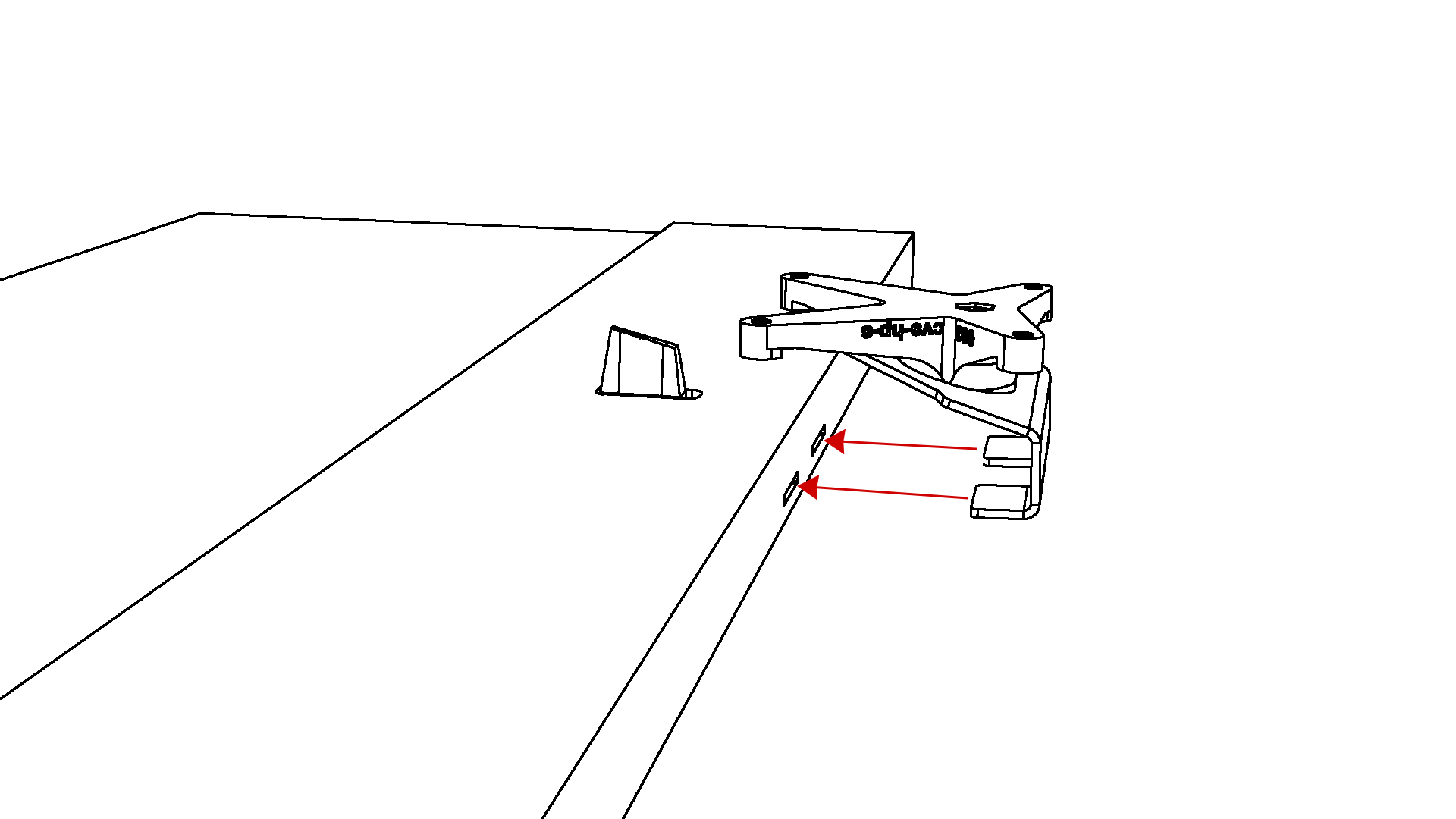

Slide the 3idee VESA adapter into the monitor from below so that the metal tabs almost completely disappear into the monitor. (Figure 1)
Figure 1
Step 3

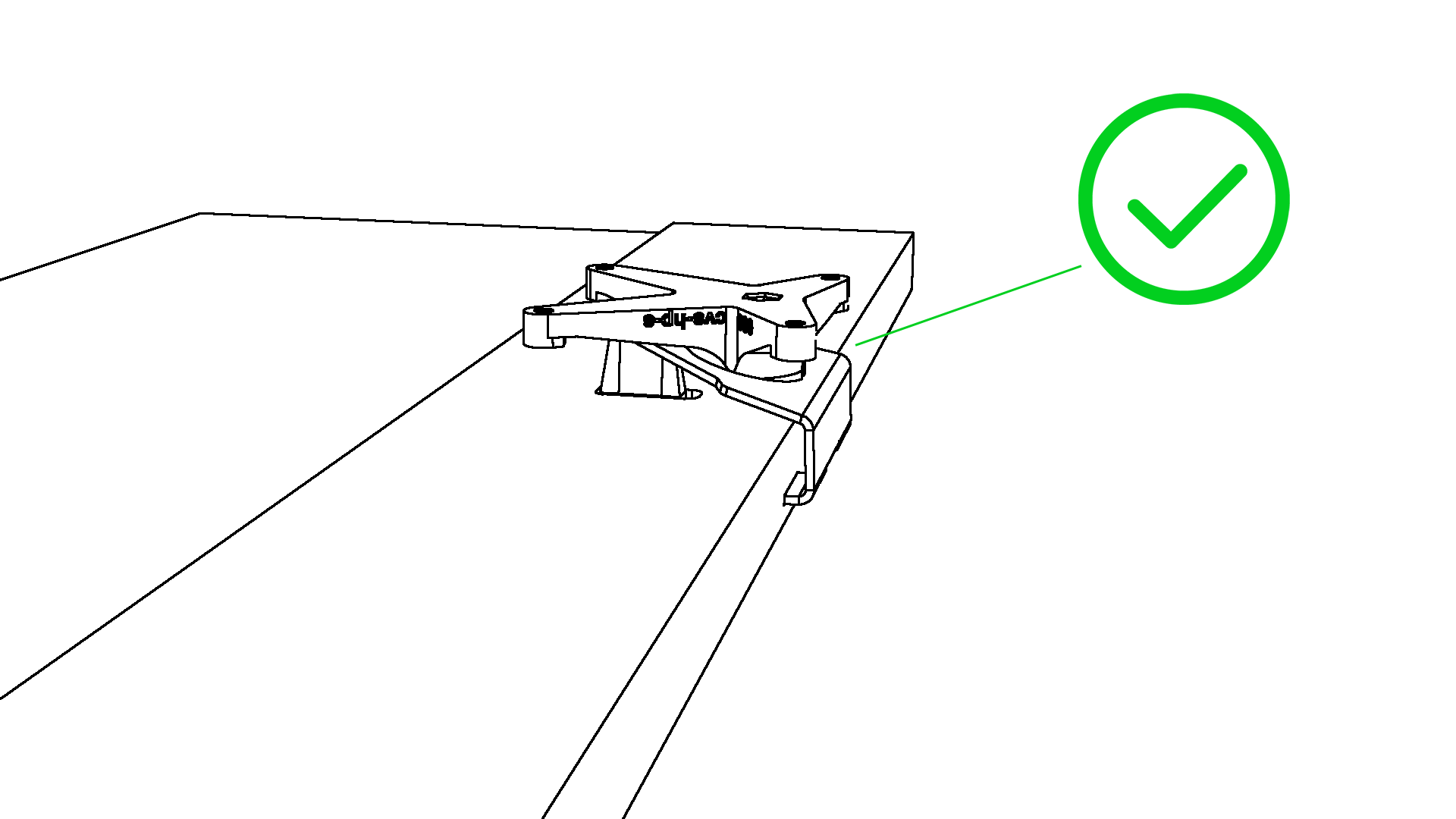

This is what the correct position should look like. (Figure 2)
Figure 2
Step 4

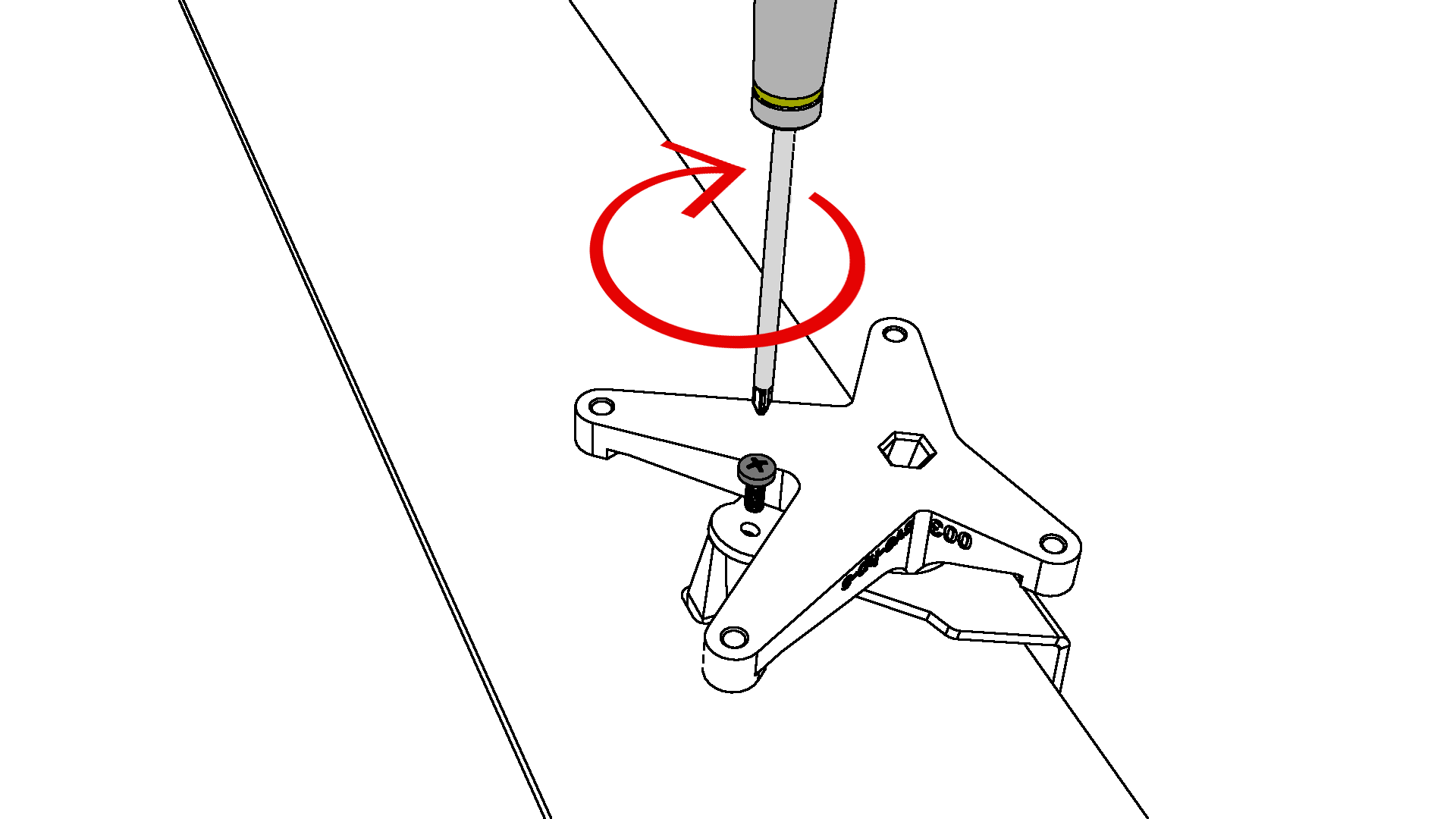

Now screw the included M4x10 screw through the VESA adapter into the monitor using a Phillips screwdriver to connect them together. (Figure 3)
Figure 3
Step 5
We recommend that you perform this step with a second person.

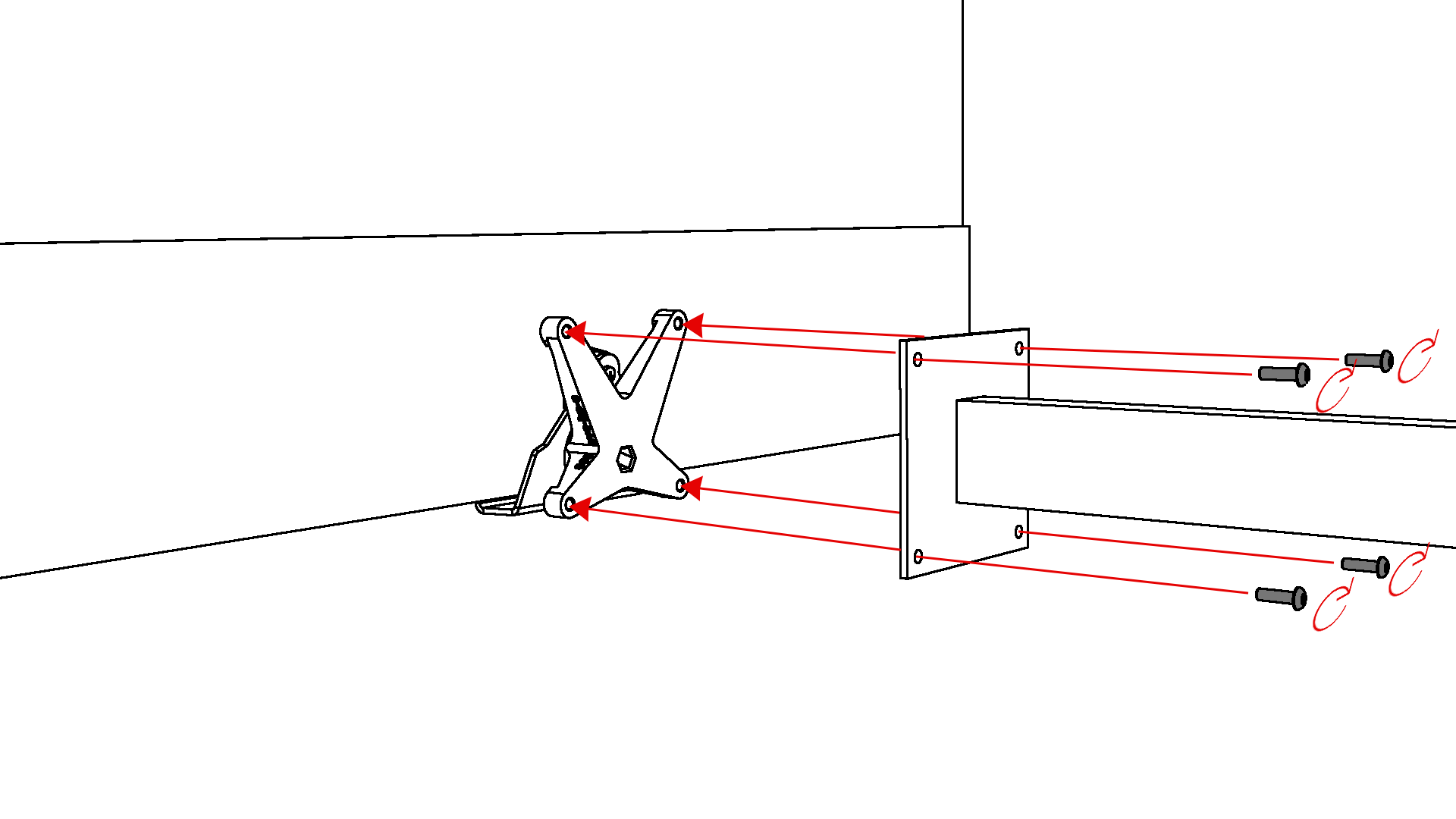

Now hold the VESA adapter on your monitor arm and screw it tight from behind with the other hand. (Figure 4)
Figure 4
Step 6

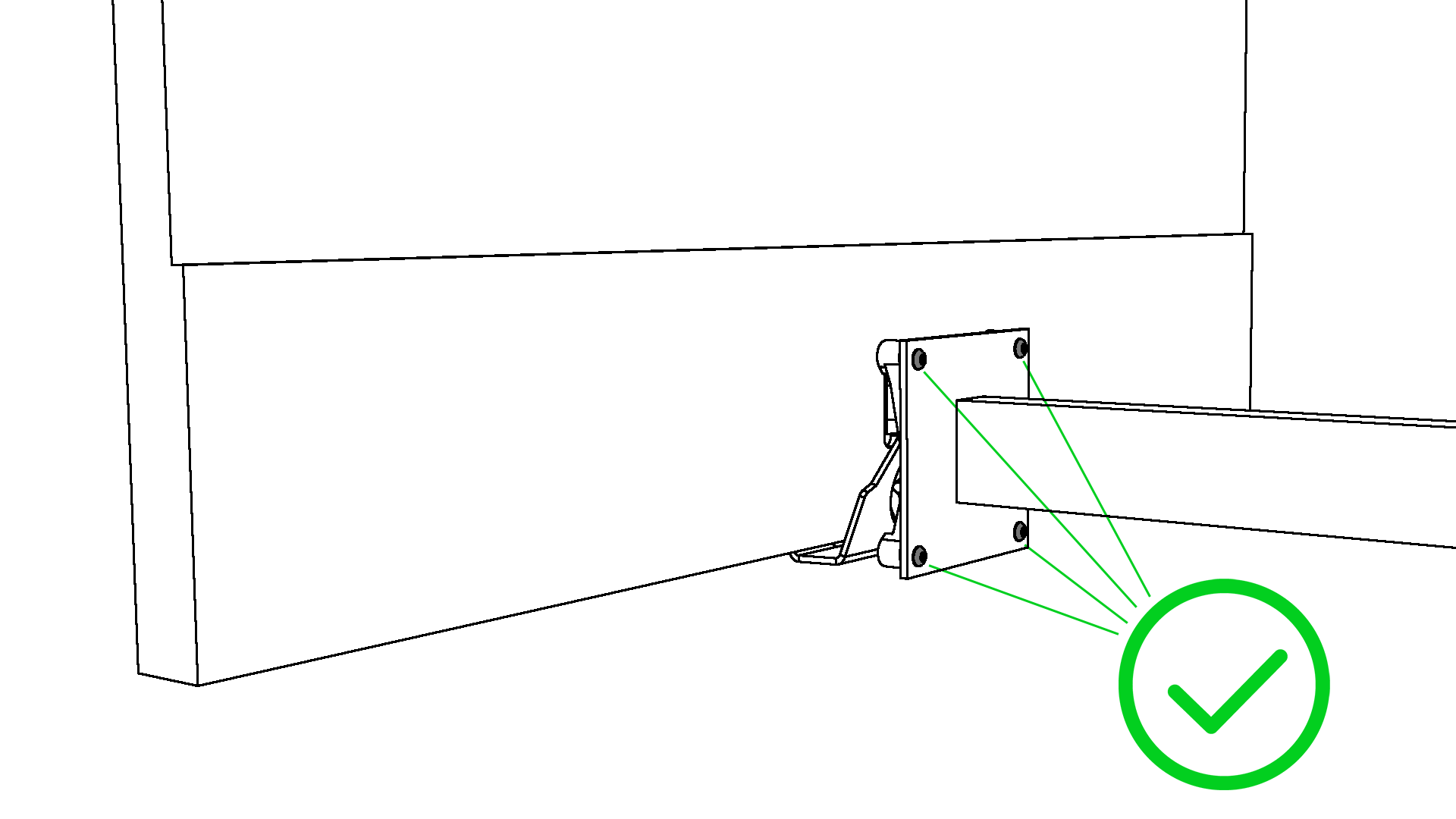

Please check again if all screws are tightened correctly. (Figure 5)
Figure 5
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
