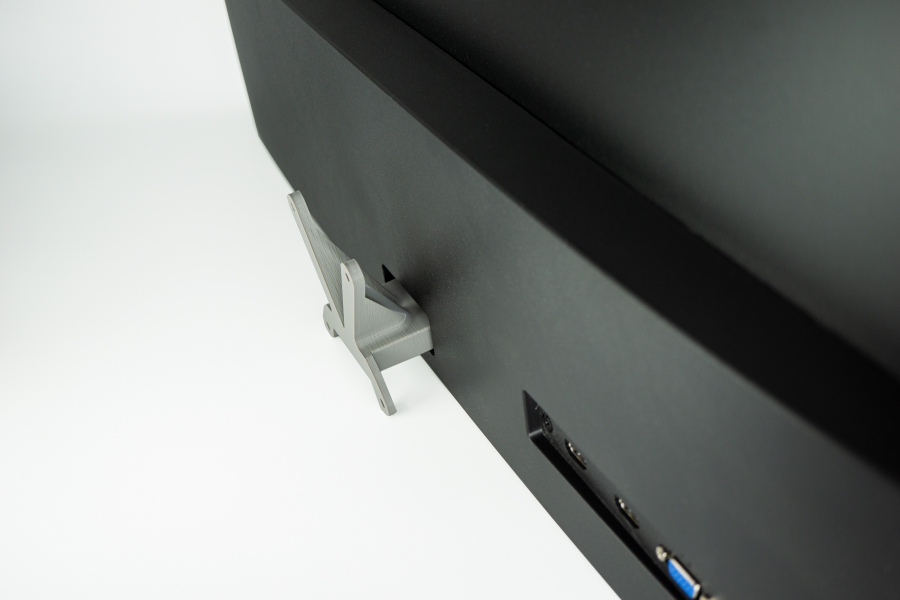

Easily mount your monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-

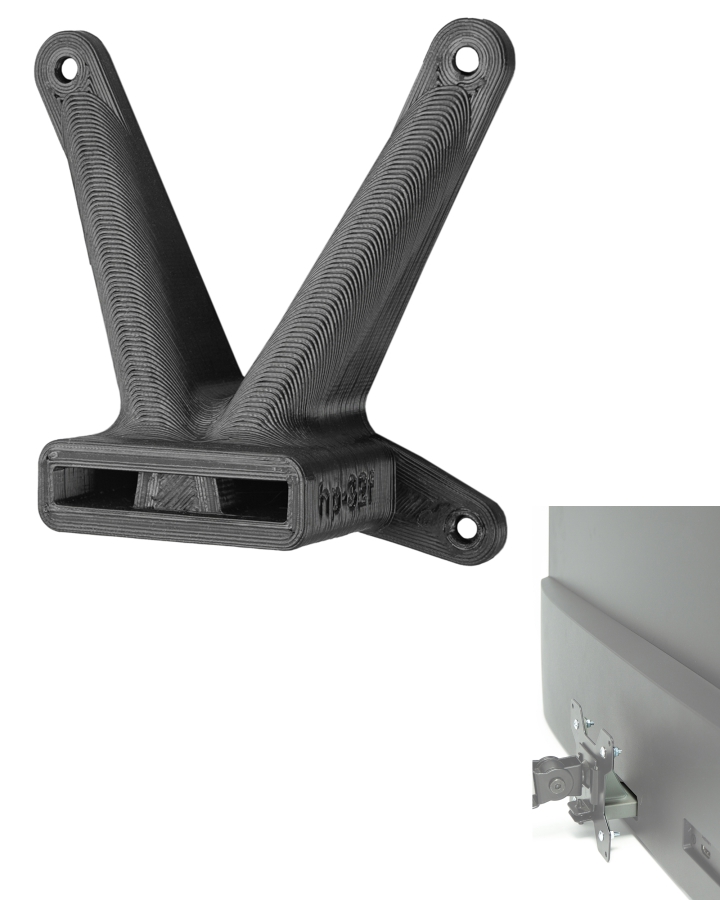

Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the HP 32f series adapters.
-
The 3idee quality promise: Our adapters have been tested for longevity and durability. However, if you are not satisfied with the product please reach out to us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following HP monitor series: 32f
For installation instructions and technical help, please visit help.3idee.eu or scan the QR code on the packaging of your adapter.
Scope of delivery: 1x VESA adapter, 4x Connection screws, 4x screws and 4x nuts for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders. The 3IDEE team is looking forward to your enquiry.
Table of contents
The 3idee VESA adapter hp-32f is compatible with the following product from hp (hp.com ) is compatible: 32f.
The 3idee VESA adapter hp-34f Curved is compatible with the following product from hp (hp.com ) is compatible: 34f Curved.

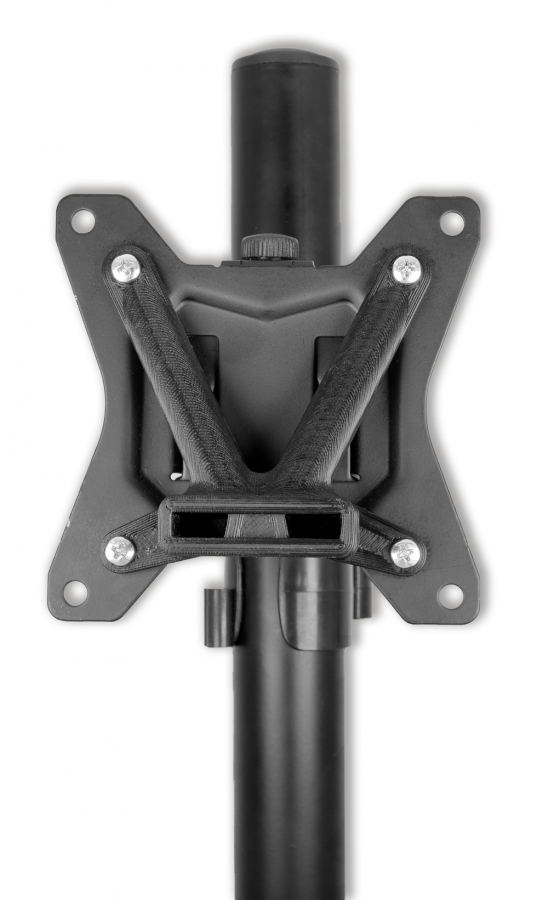

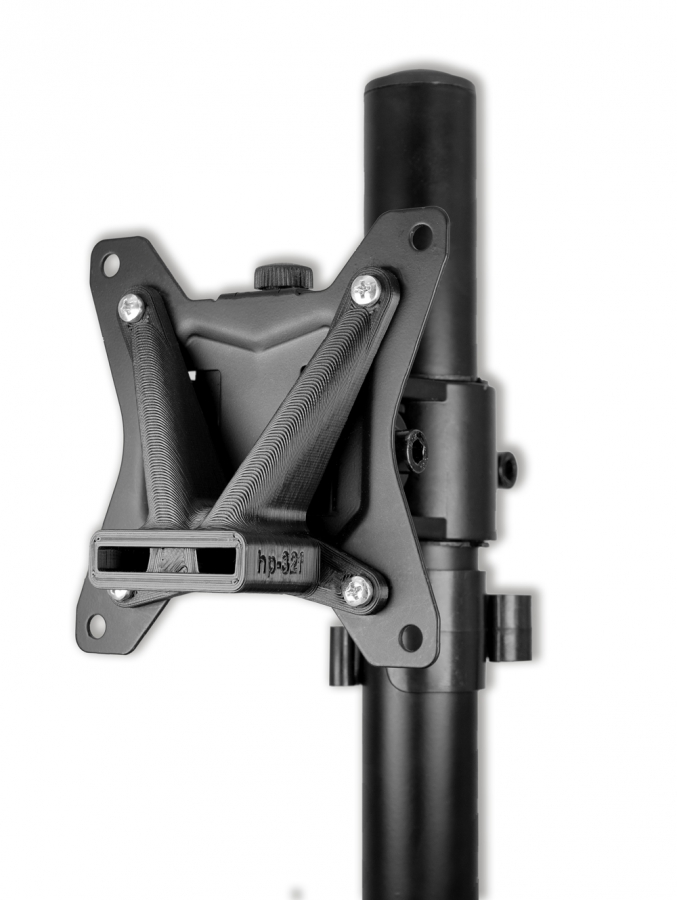

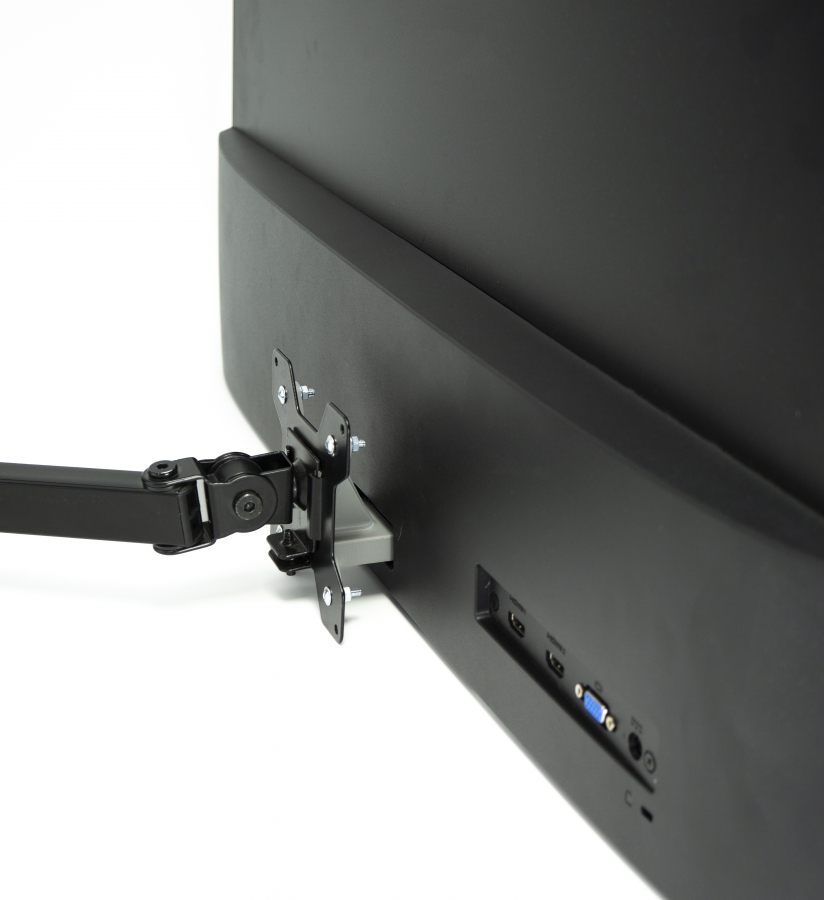

The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm ). Use the included screws and nuts for this purpose.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels. (not included in delivery )
Here you can download the manual as a PDF
Step 1
Place your screen in a safe, soft place so that your screen does not get damaged.
Remove the base of the monitor.
Step 2

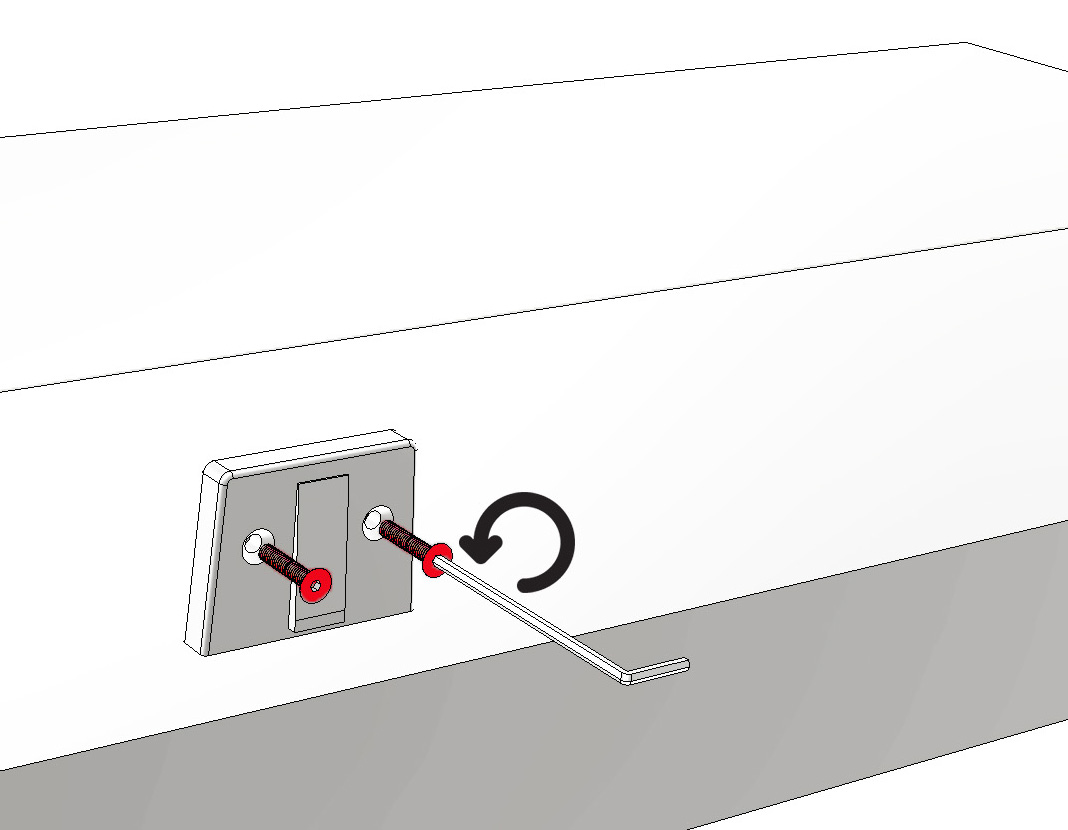

Loosen the two screws on the bottom of the white clip. Then you can pull it off the monitor. (Figure 1)
Figure 1
Step 3

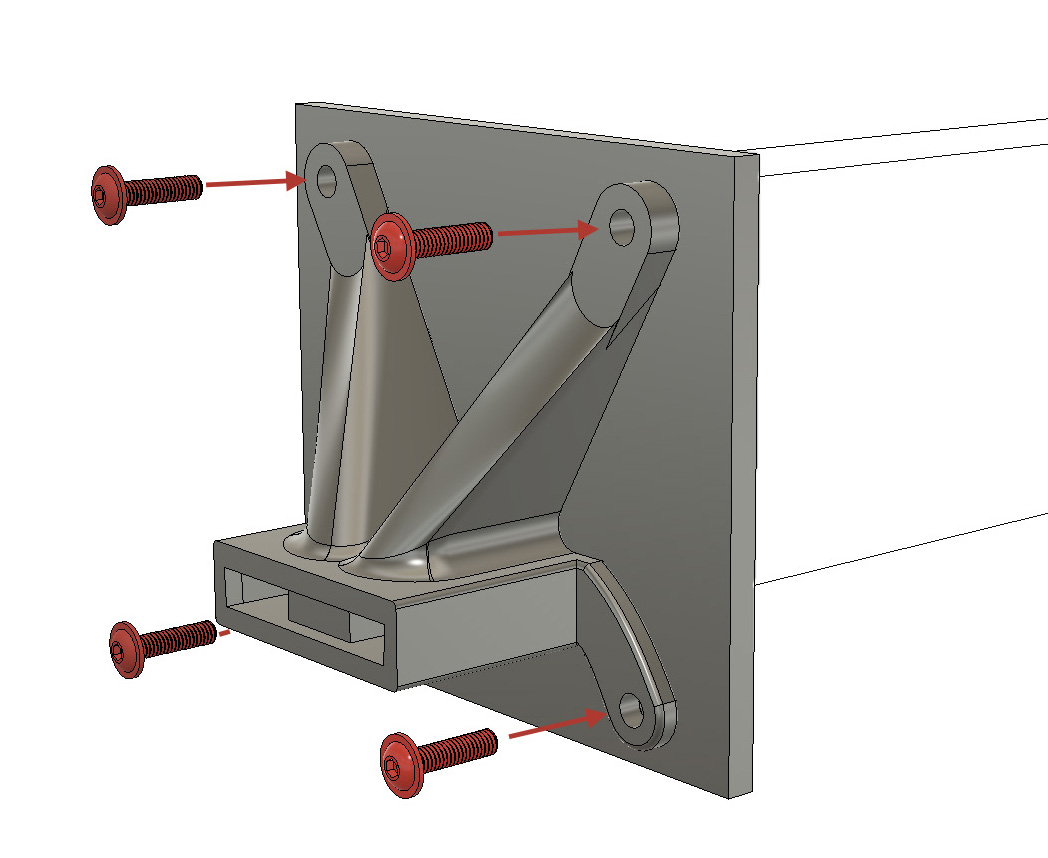

The preparation is complete, now you can attach the 3idee Vesa adapter to your monitor arm / wall. Use the provided screws and nuts . (Figure 2)
Figure 2
Step 4

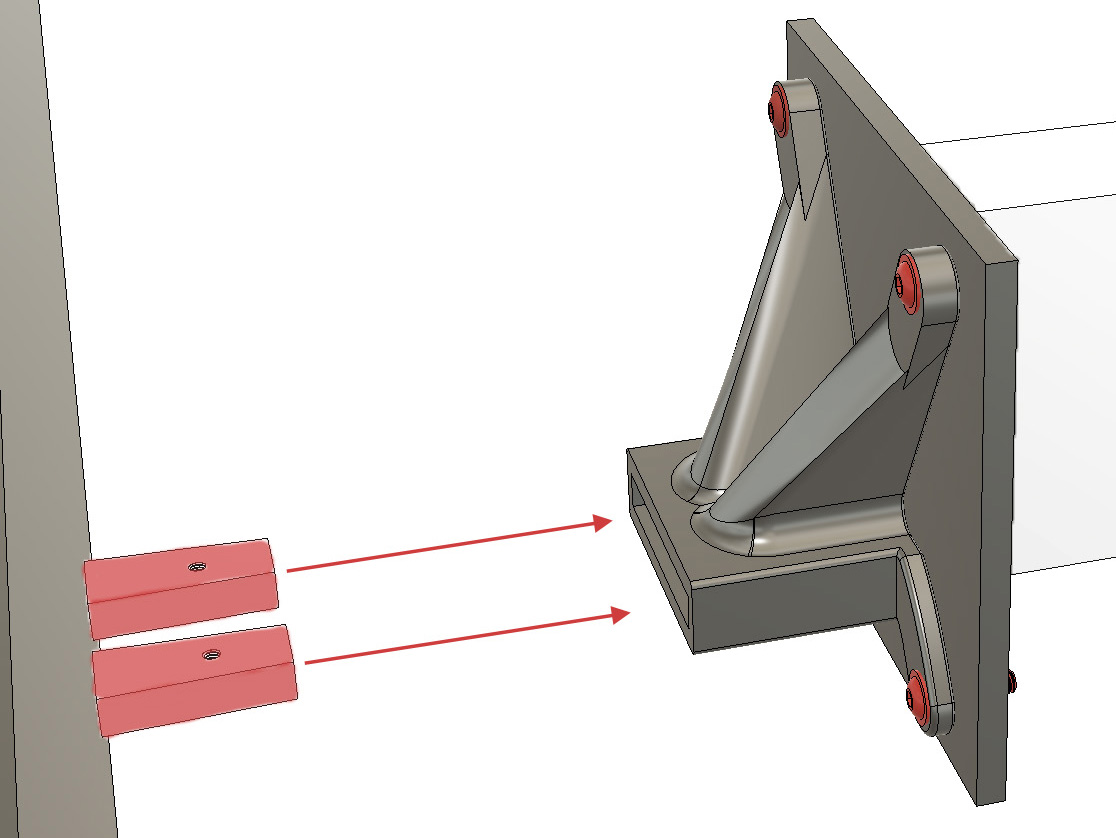

For this step, it is best to have a second person help you. Now take your monitor and carefully insert it into the mount (Figure 3). Hold the monitor firmly while it is not yet fixed to the mount with the 2 screws.
The screw holes in the Vesa adapter should now be aligned with the threads in the metal part of the monitor.
Figure 3
Step 5

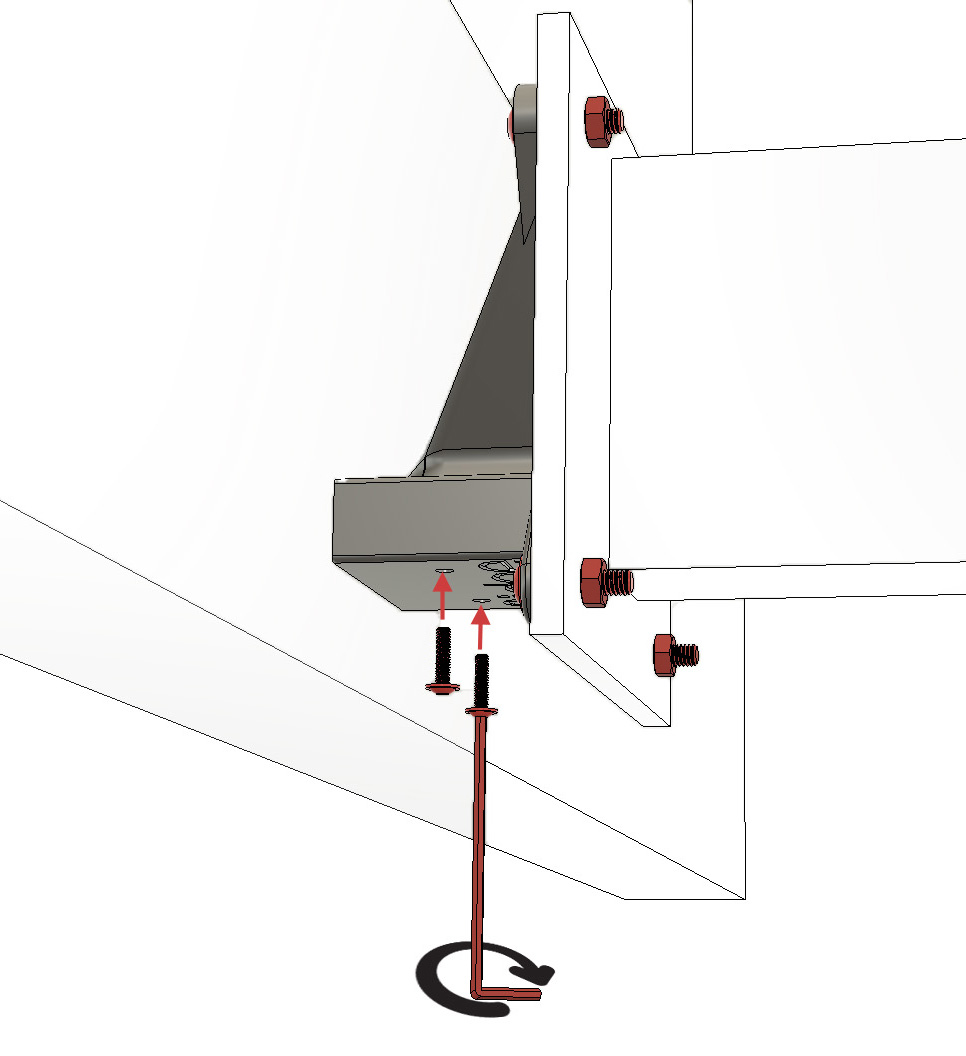

Now screw the 2 small screws from below into the Vesa adapter until they are flush and tight with the monitor. (Figure 4)
Figure 4
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
