Easily mount your monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-
Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the AOC 24V2Q, 27V2Q series adapters.
-
The 3idee quality promise: Our adapters have been tested for longevity and durability. However, if you are not satisfied with the product please reach out to us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following AOC monitor series: 24V2Q, 27V2Q.
For installation instructions and technical help, please visit help.3idee.eu or scan the QR code on the packaging of your adapter.
Scope of delivery: 1x VESA adapter, 1x centering screw, 4x screws and 4x nuts for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders. The 3IDEE team is looking forward to your enquiry.
----
Our VESA adapter is the perfect solution to mount your AOC monitor (24V2Q, 27V2Q) to the wall or a monitor arm. With a size of 75x75mm, it is specifically compatible with AOC 24V2Q and 27V2Q model. Our adapters are made with high quality materials and are known for their sturdiness and durability. Installation is simple and quick using the included screw kit, and allows you to create an ergonomic work environment. By using our VESA adapter, you can save space on your desk and place your monitor at eye level. Order our VESA adapter compatible with AOC monitor (24V2Q, 27V2Q) now and experience the difference.
Table of contents
The VESA adapter is compatible with the following products from aoc (aoc.com): 24v2q and 27v2q.
The VESA adapter allows you to conveniently mount your AOC brand monitor to a monitor arm with a VESA hole pattern( 75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Step 1

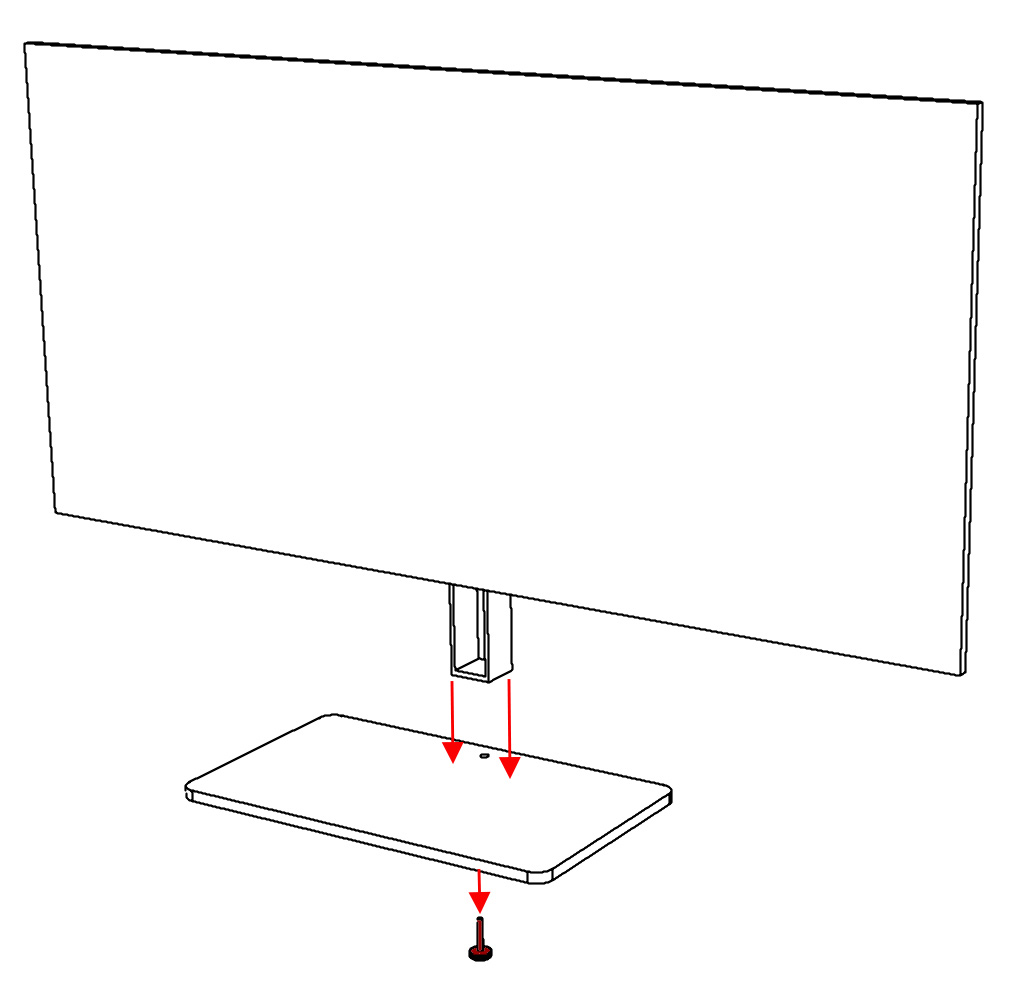

Remove the lower part of the base of your AOC monitor. (Figure 1)
Figure 1
Step 2

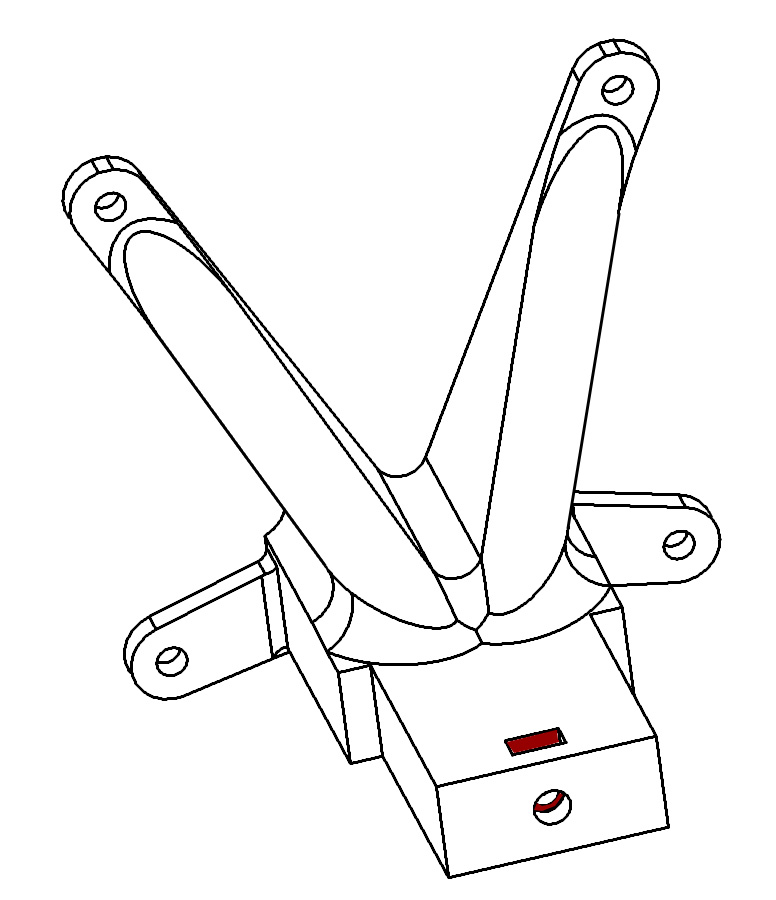

Check whether the square nut is still in the correct position.
This step is already taken care of in our production, but it may happen that the square nut falls out during longer transports by a shipping service provider. (Figure 2)
Figure 2
Step 3

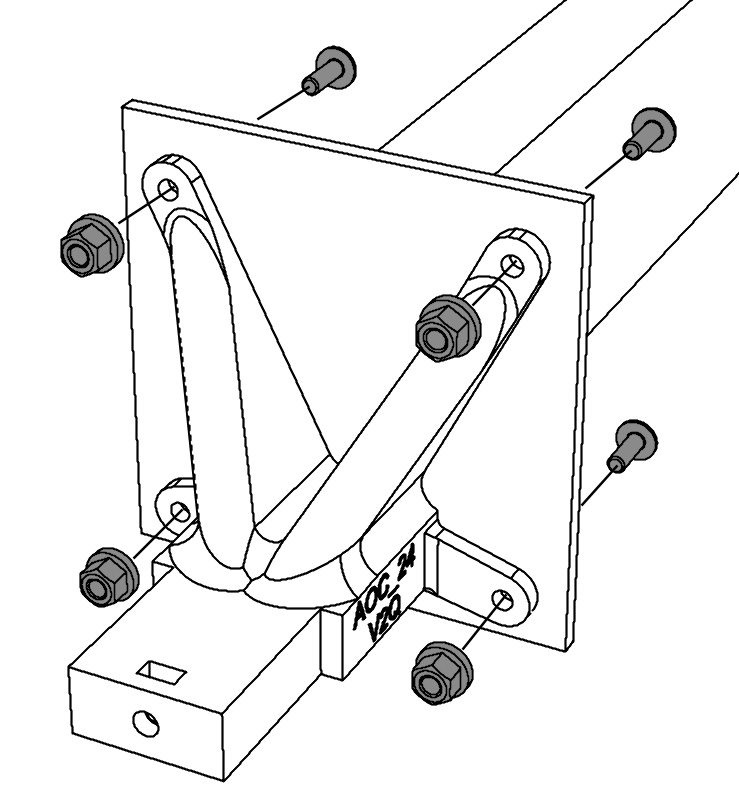

Now attach the VESA adapter to your monitor arm using the included screws. (Figure 3)
Tighten the screws firmly enough, but please keep in mind that the material is plastic.
Alternative: Wall mounting is also possible, but screws and dowels are not included.
Figure 3
Step 4

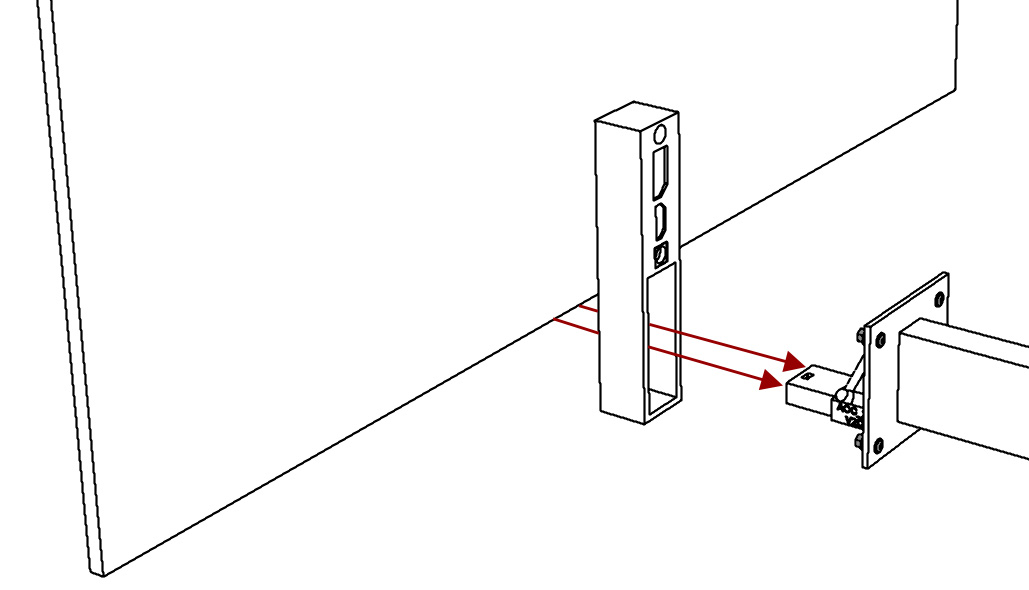

Now you can "slide" your AOC monitor onto the 3idee VESA adapter. Of course, you can determine the height yourself. (Figure 4)
Figure 4
Step 5
Now please check whether the screen has been correctly slid onto the VESA adapter. For this purpose, the rear surface of the screen base (yellow ) and the red marked area of the VESA adapter should be aligned. (Figure 5)
Figure 5
Step 6

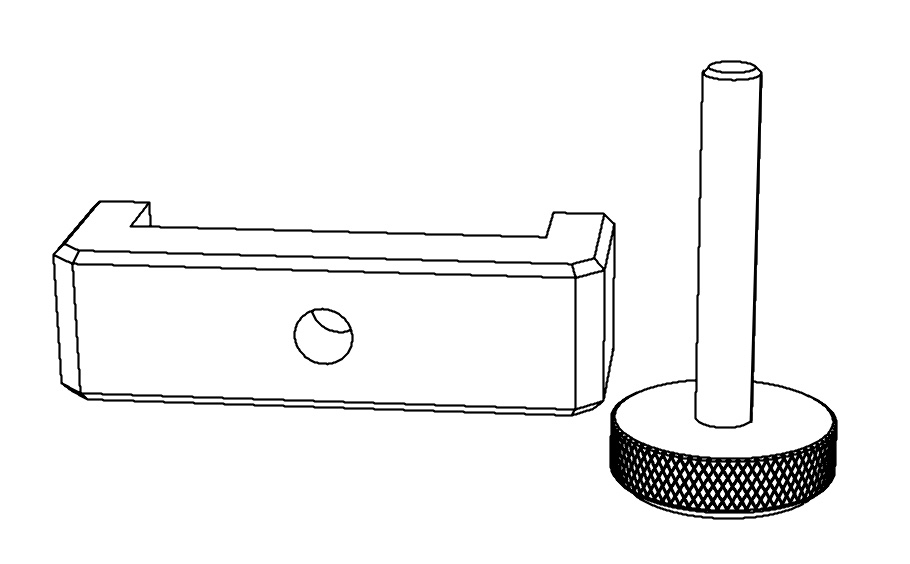

Now comes the small part of the 3idee bracket and the thumbscrew. (Figure 6)
This looks as shown and is in the product packaging.
Figure 6
Step 7

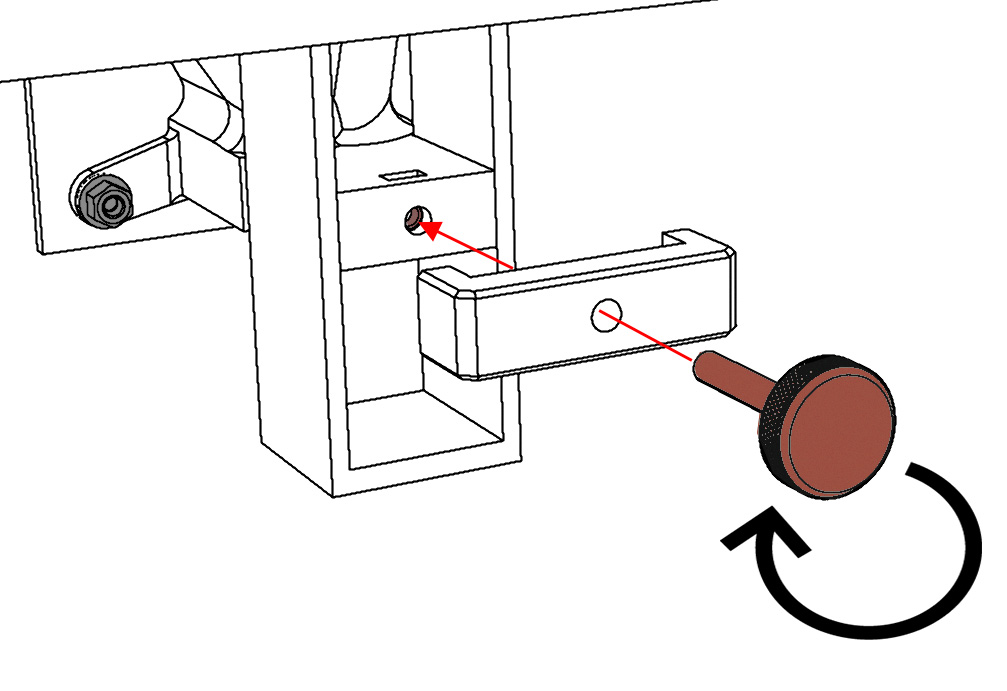

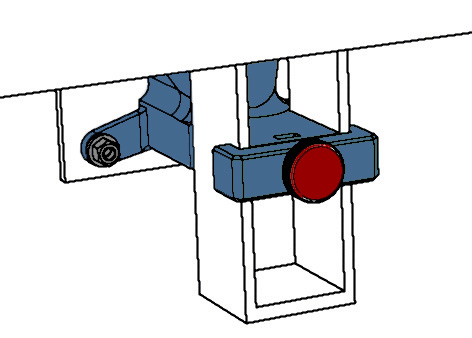

Now attach the "clamp" from step 6 to the 3idee VES adapter so that it holds your screen in place (Figure 7).
Check if the screen can still move in the bracket, if so, tighten the thumb screw (red) a little more.
Figure 7
Step 8
Now your screen is fixed and you can enjoy your newfound space
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
