Easily mount your monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-
Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the HP Mf series adapters.
-
The 3idee quality promise: Our adapters have been tested for longevity and durability. However, if you are not satisfied with the product please reach out to us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following Xiaomi monitor series: Mi Desktop monitor 27".
For installation instructions and technical help, please visit help.3idee.eu or scan the QR code on the packaging of your adapter.
Scope of delivery: 1x VESA adapter, 4x screws and 4x nuts for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders. The 3IDEE team is looking forward to your enquiry.
Table of contents
The VESA adapter is compatible with the following Xiaomi (mi.com) products: 27inch desktop monitor.
The VESA adapter allows you to conveniently mount your XIAOMI brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts for this purpose.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Step 1
Place the monitor securely and flat on a soft surface. Now press into the stand from below with a screwdriver to release the click. Pull the stand upwards at the same time. (Figure 1)
Figure 1
Step 2

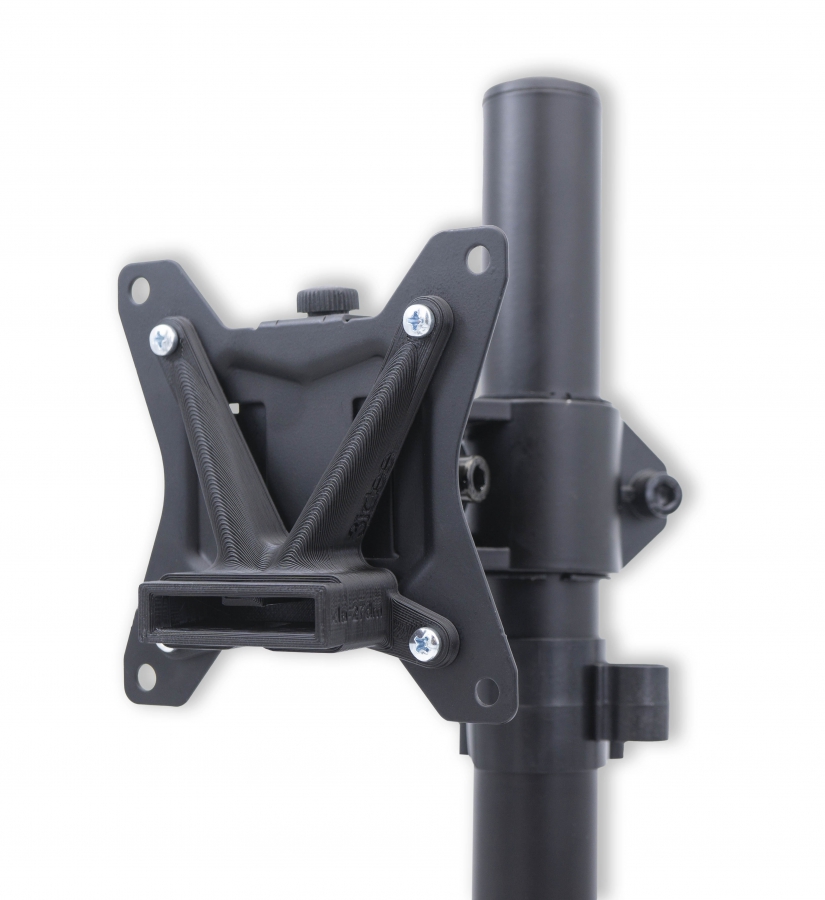

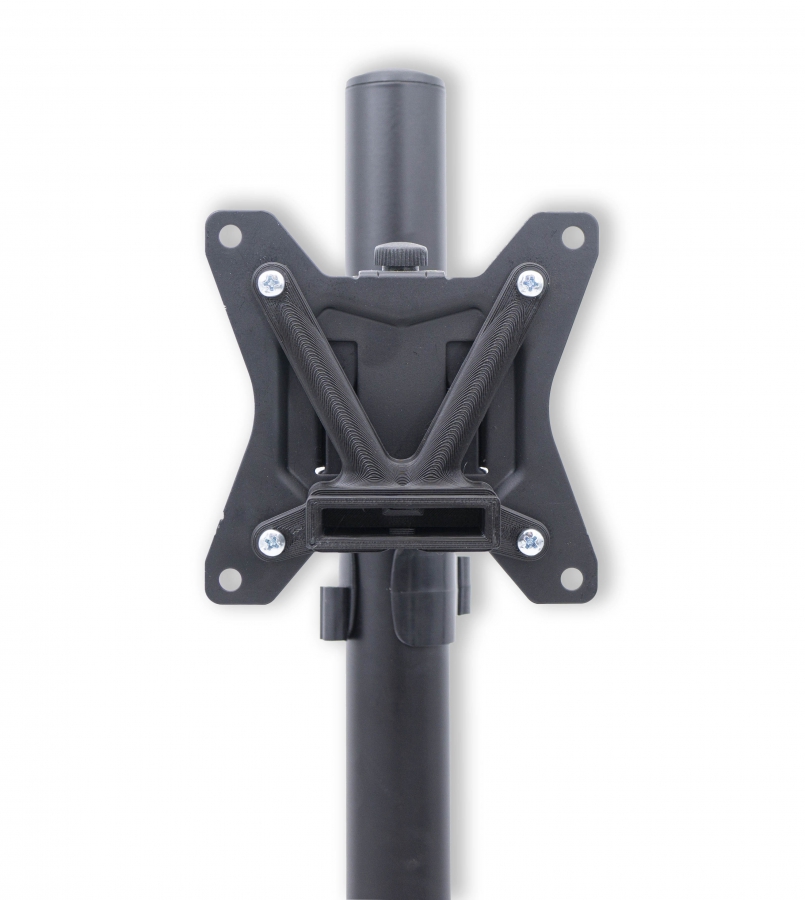

Mount the 3idee VESA adapter to your monitor arm or directly to the wall. (Figure 2)
Figure 2
Step 3

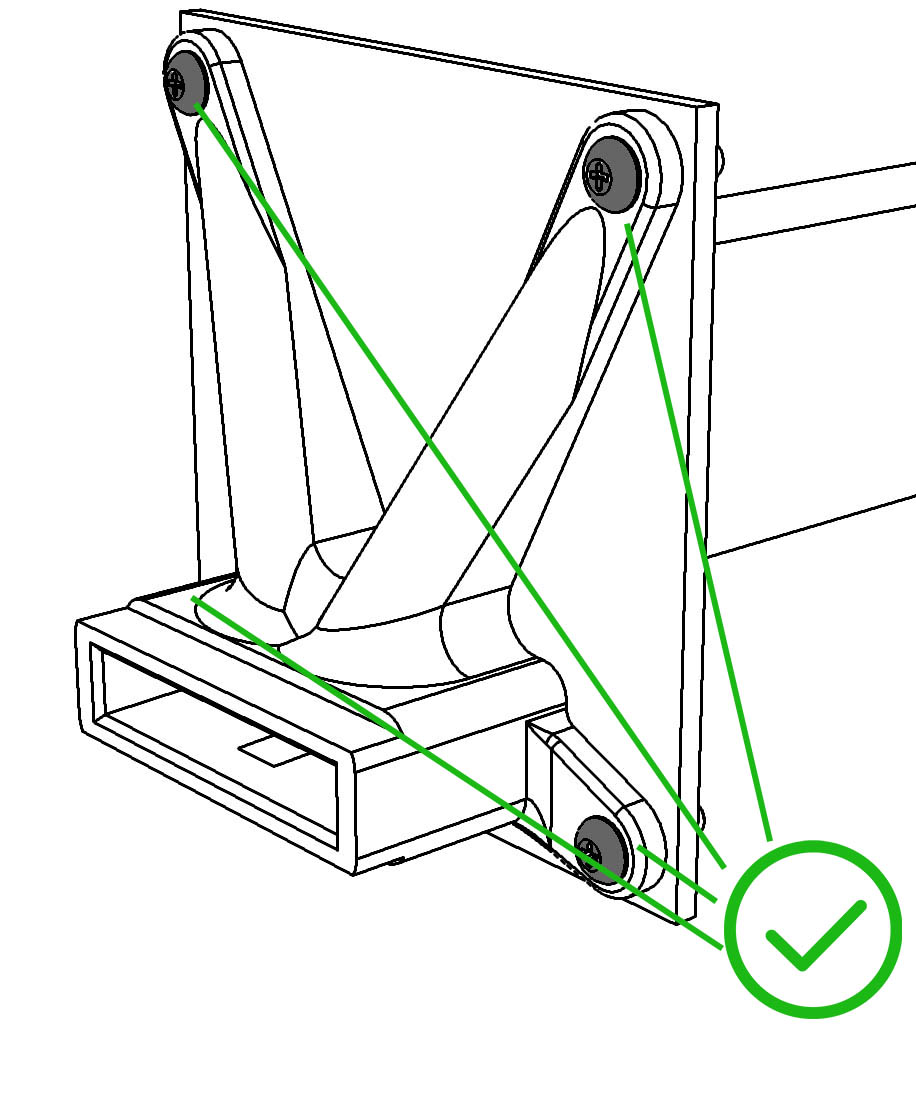

Once you have completed the last step, please check if all screws are tightened. (Figure 3)
Figure 3
Step 4

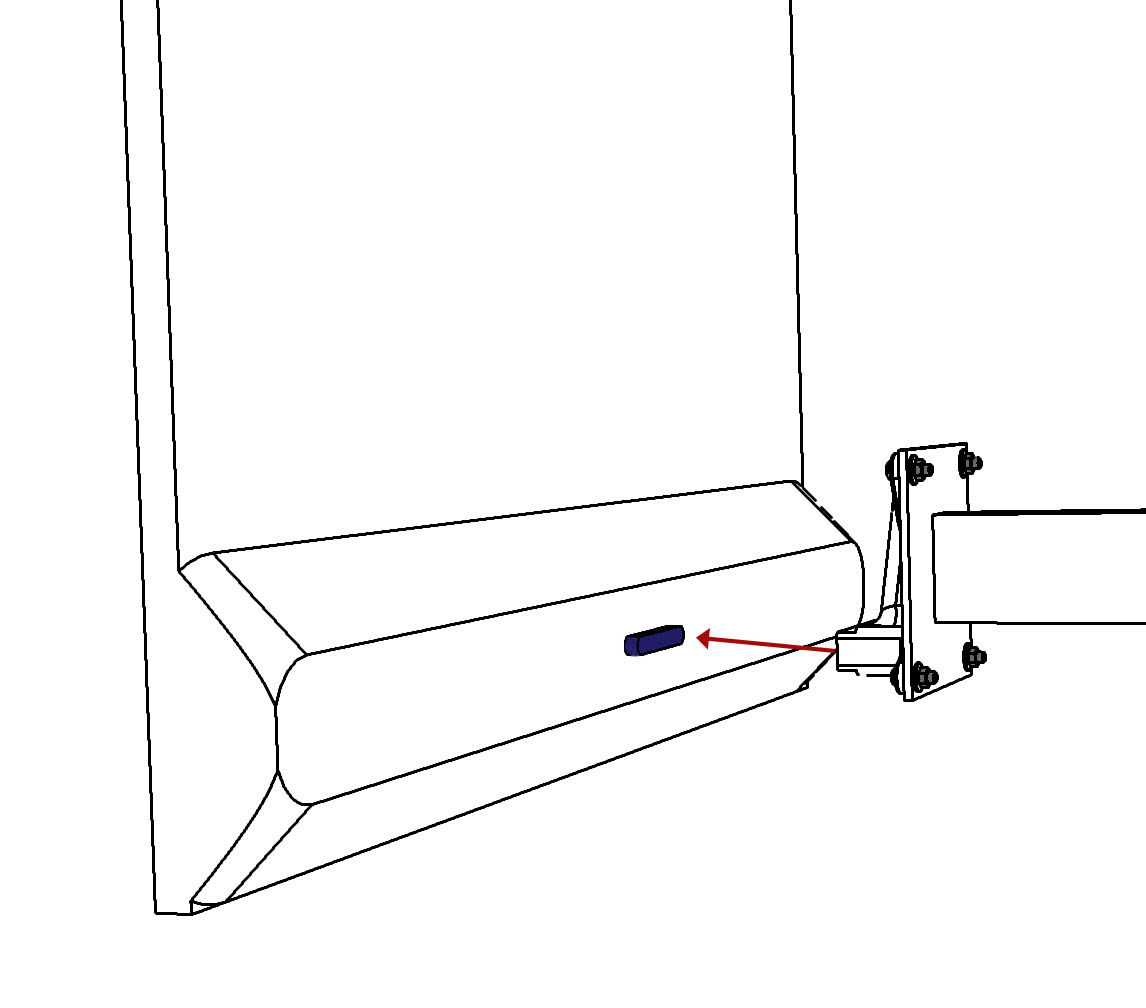

Place the monitor on the adapter so that it audibly clicks into place.
Note: Apply some pressure if necessary!
Please make sure that you secure the monitor well with your hand while it is not fully engaged. (Figure 4)
Figure 4
Step 5

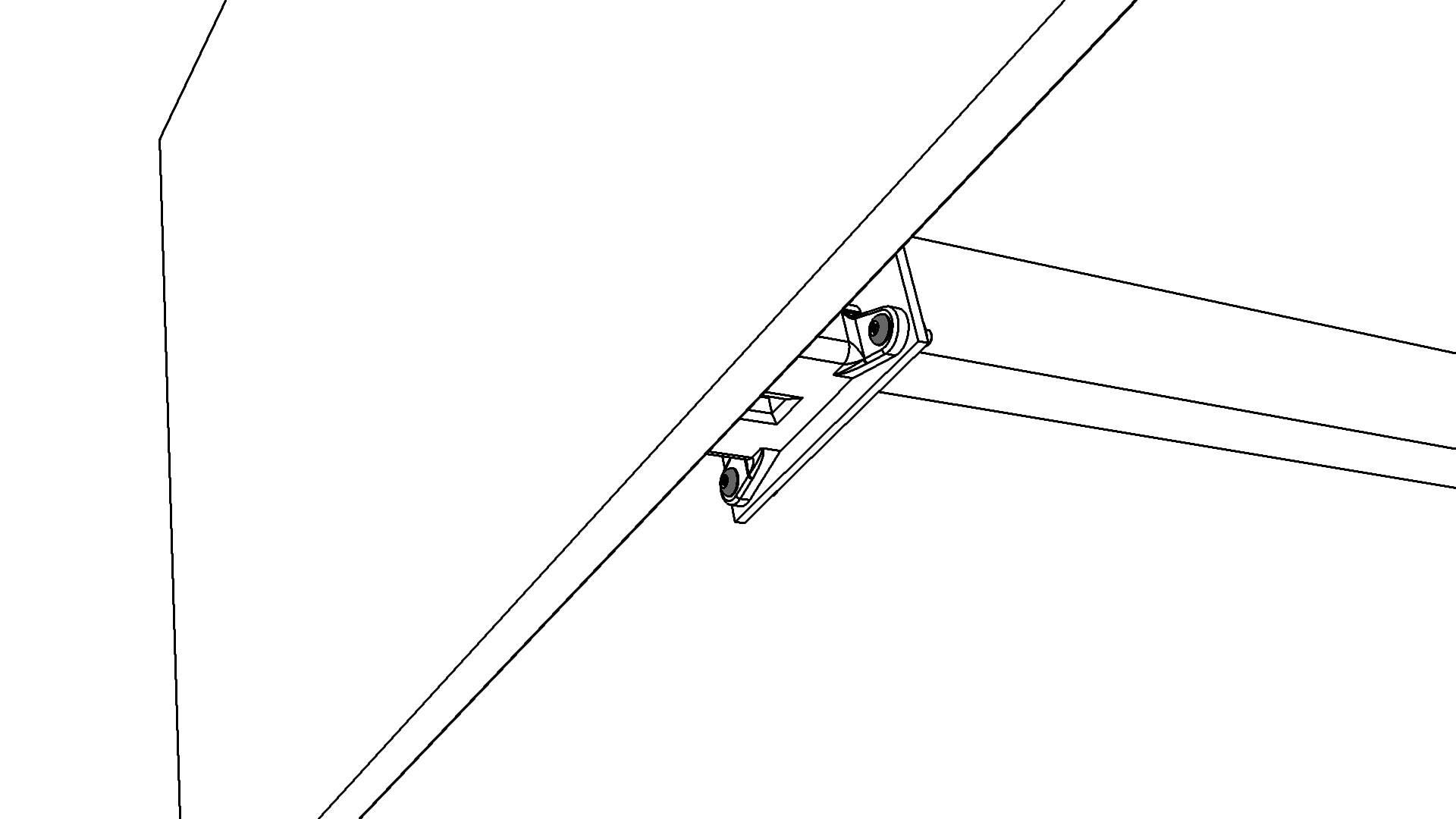

Now check if the monitor is properly locked into the VESA adapter. You can try to pull the monitor towards you while it should be firmly connected to the VESA adapter. (Figure 5)
Figure 5
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
