Easily mount your HP monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-
Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the HP Mf series adapters.
-
The 3idee quality promise: Our adapters have been tested for longevity and durability. However, if you are not satisfied with the product please reach out to us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following HP monitor series: M22f, M24f, M24fw, M27f, M27fw.
For installation instructions and technical help, please visit help.3idee.eu or scan the QR code on the packaging of your adapter.

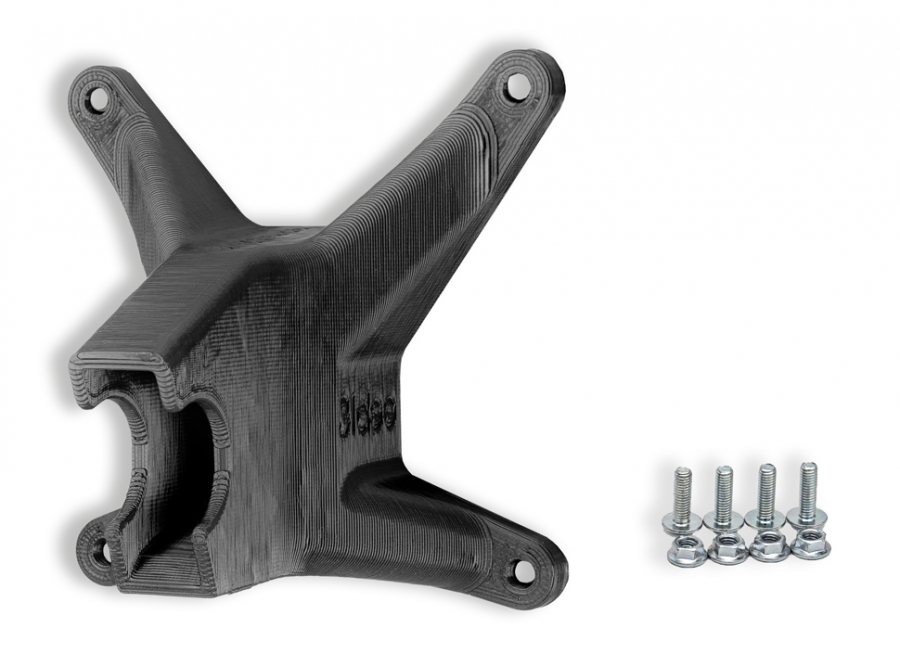

Scope of delivery: 1x VESA adapter, 4x screws and 4x nuts for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders. The 3IDEE team is looking forward to your enquiry.
Table of contents
The VESA adapter is compatible with the following products from hp (hp.com): M22F, M24F, M27f, M32f.

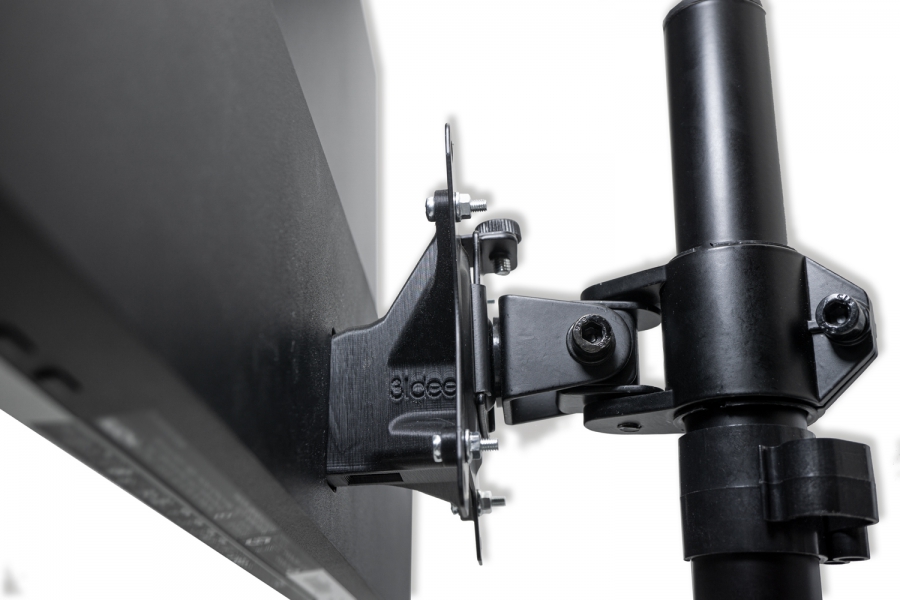

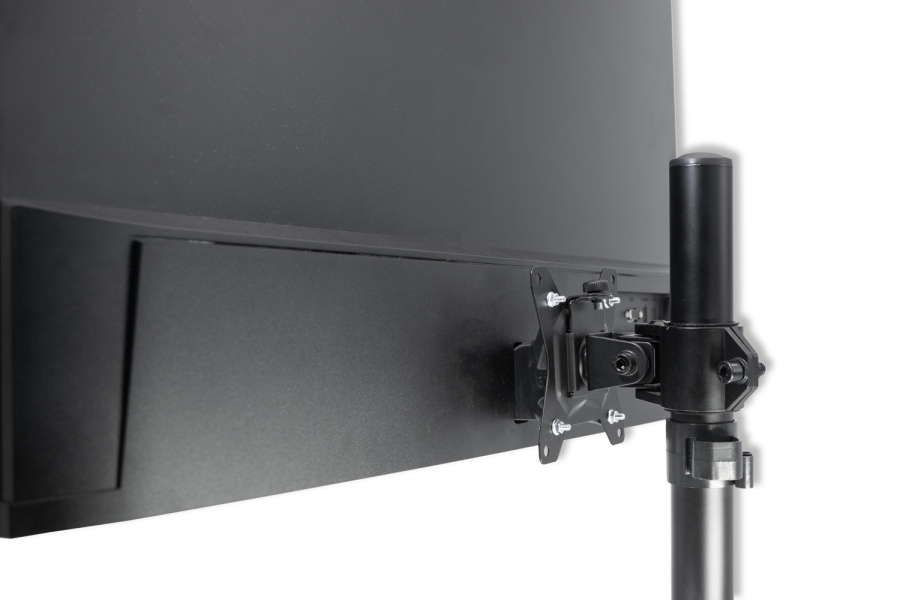

The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Step 1

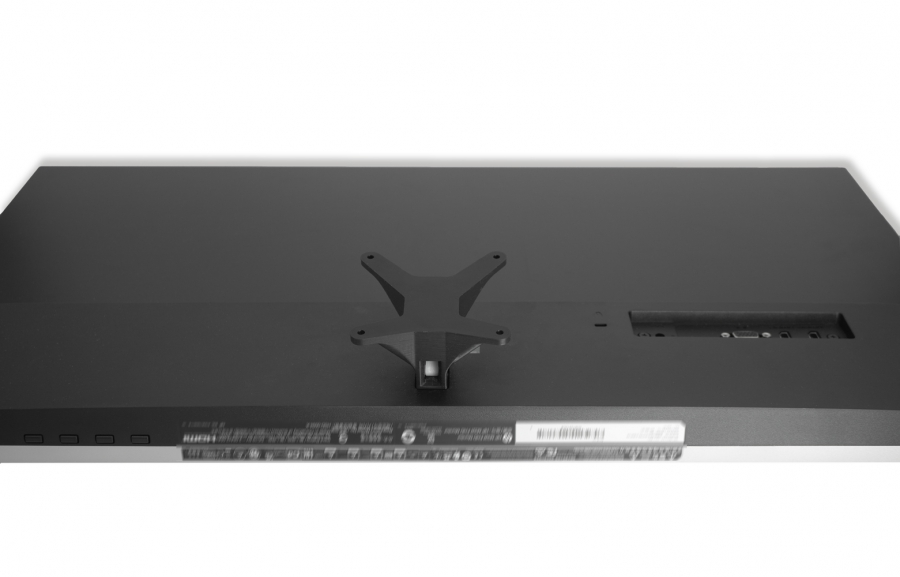

Lay your HP monitor flat on a safe and soft surface. Now remove the stand of your monitor.

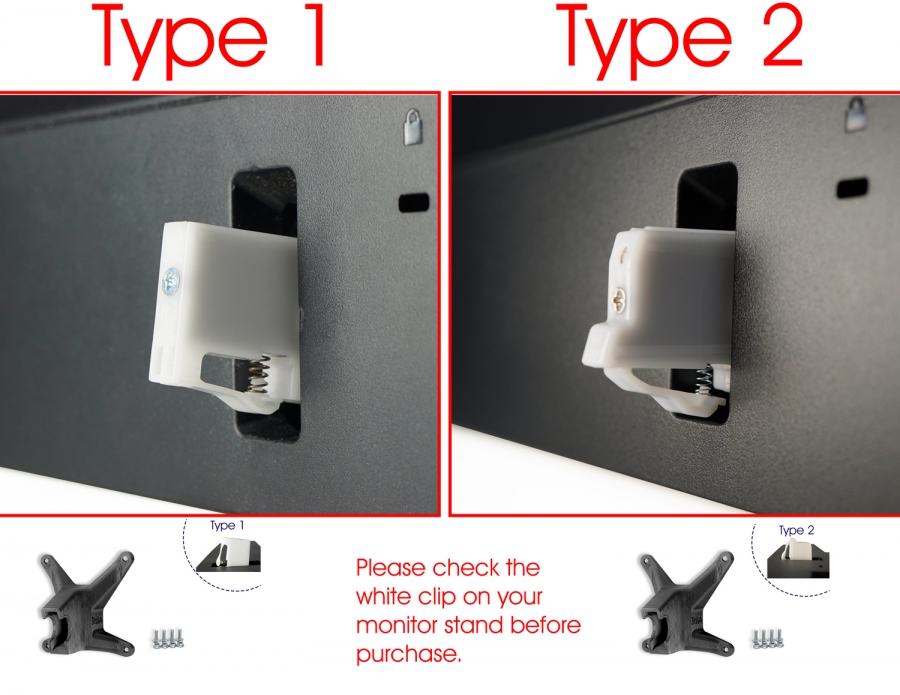

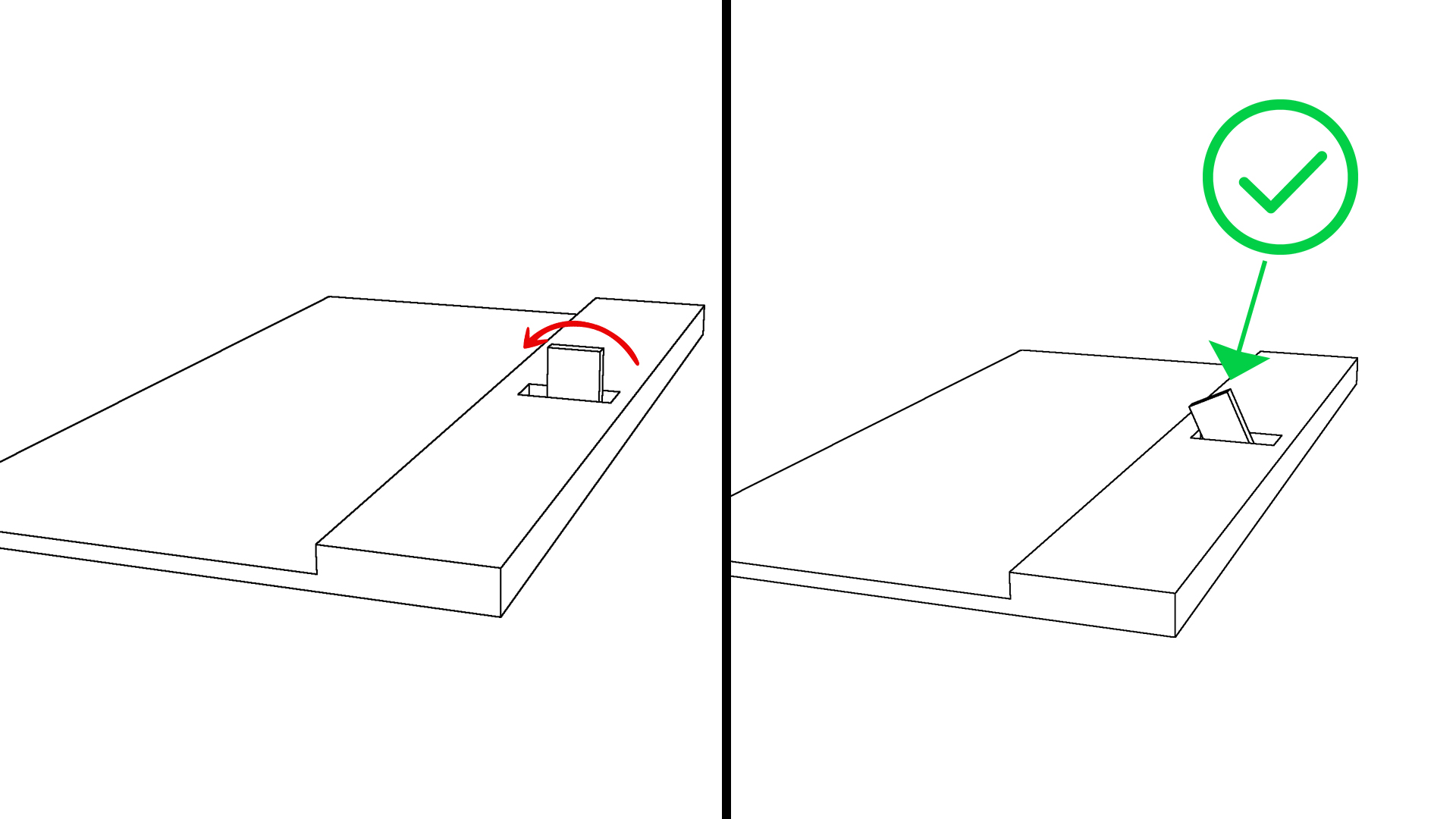

Move the white clip of your HP monitor to the position shown. (Figure 1)
Figure 1
Step 2

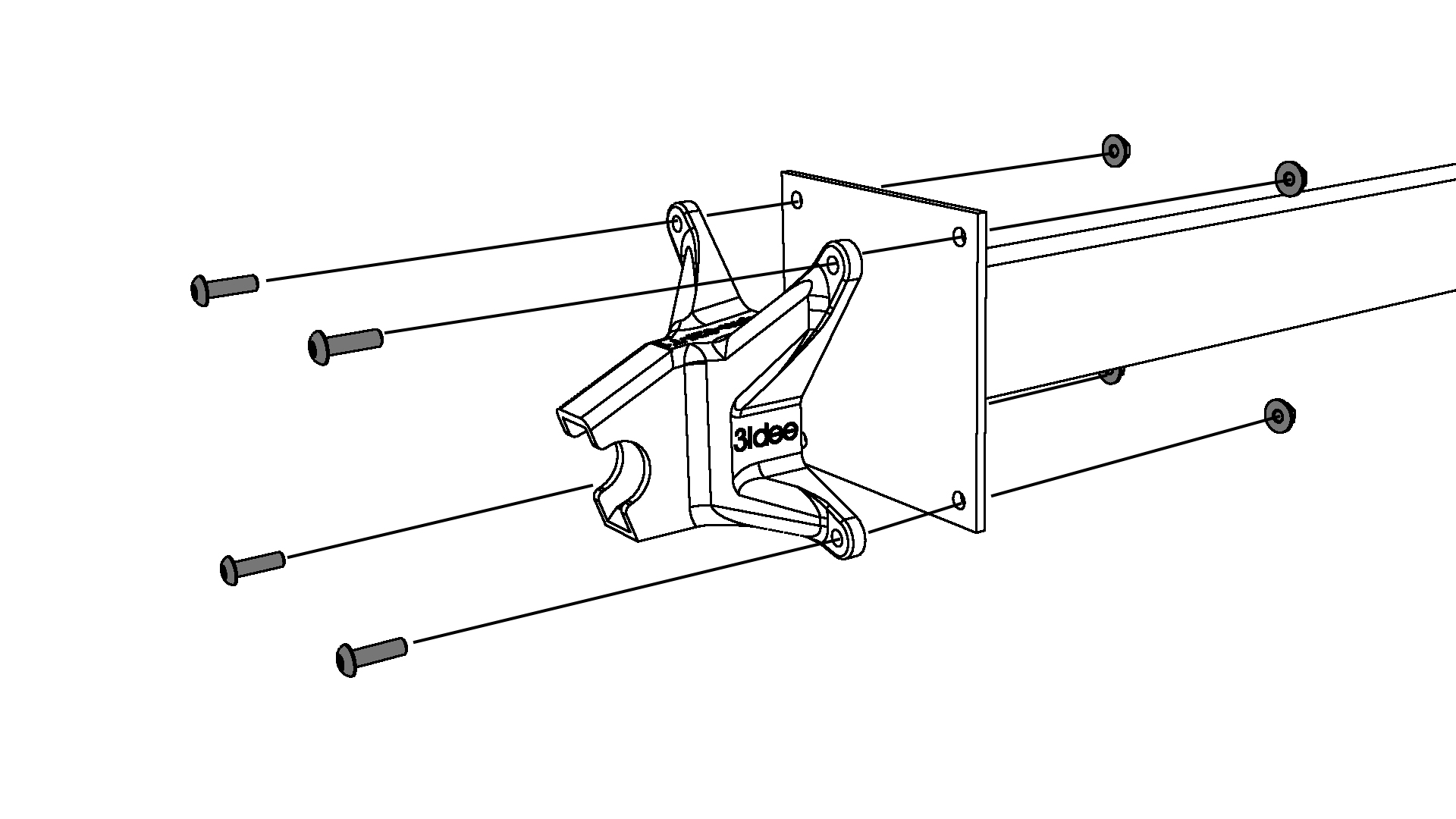

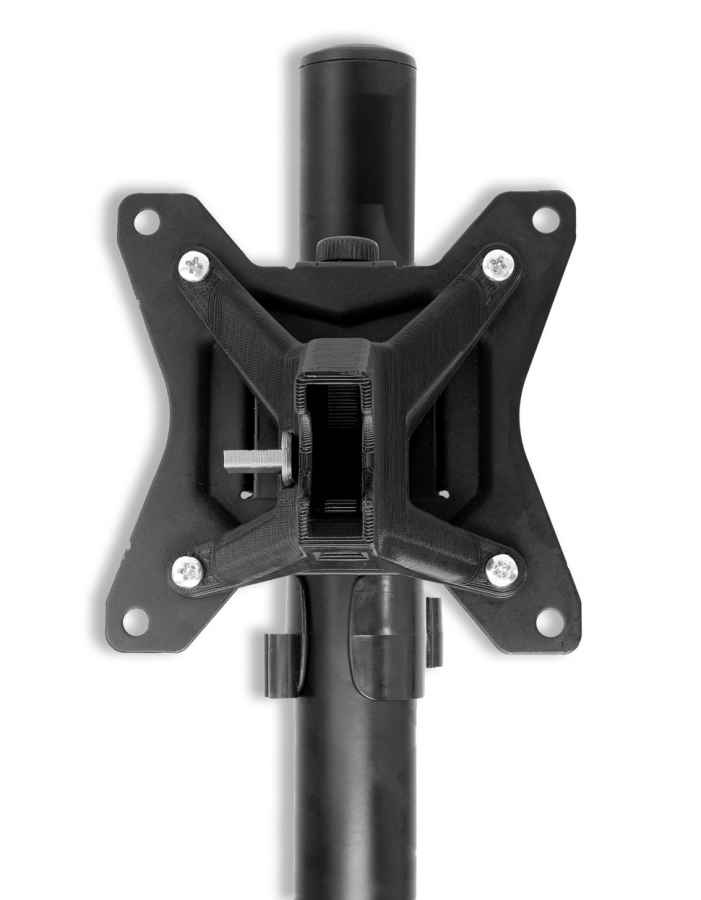

Now attach the VESA adapter to your monitor arm using the included screws. (Figure 2)
Tighten the screws firmly enough, but please remember that it is plastic.
Alternative: Wall mounting is also possible, but screws and dowels are not included.
Figure 2
Step 3

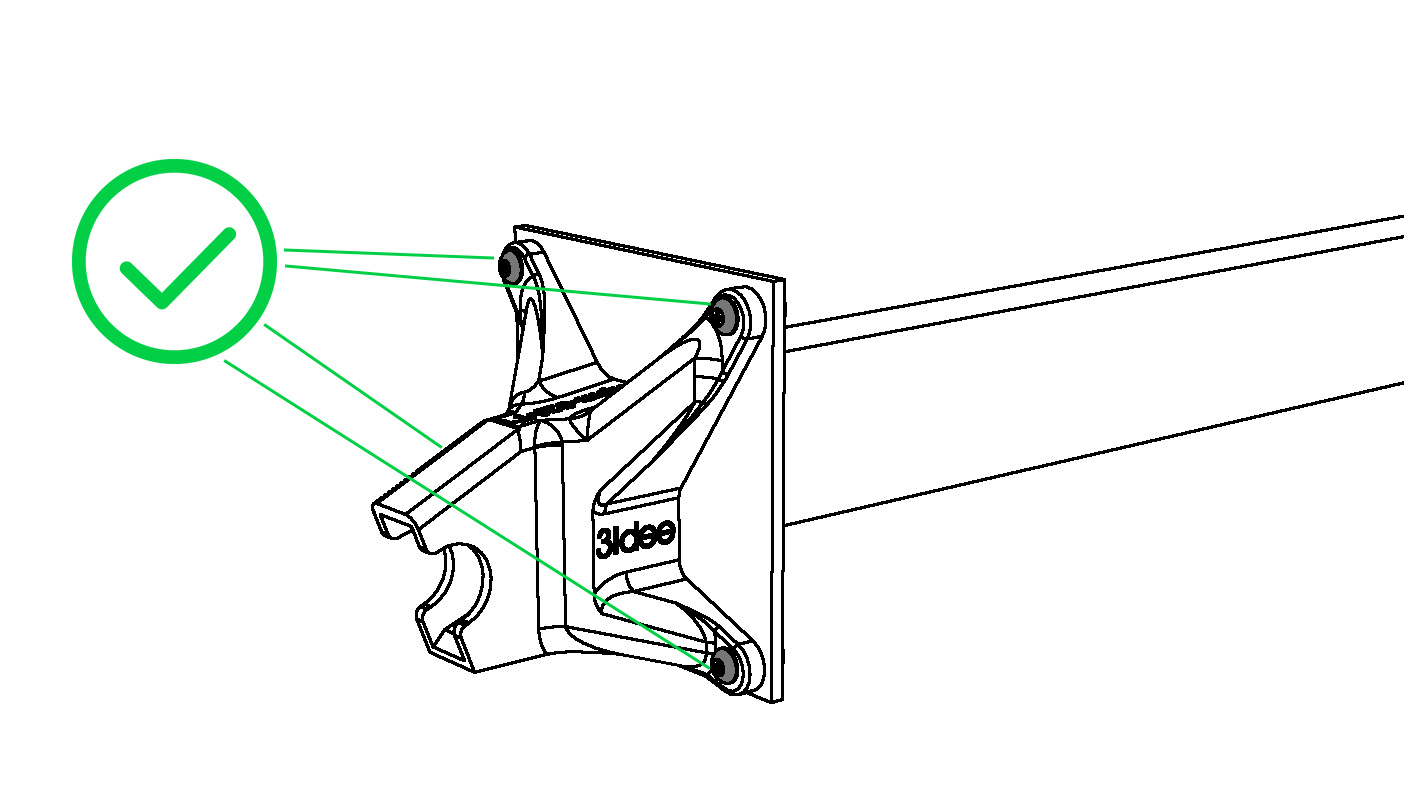

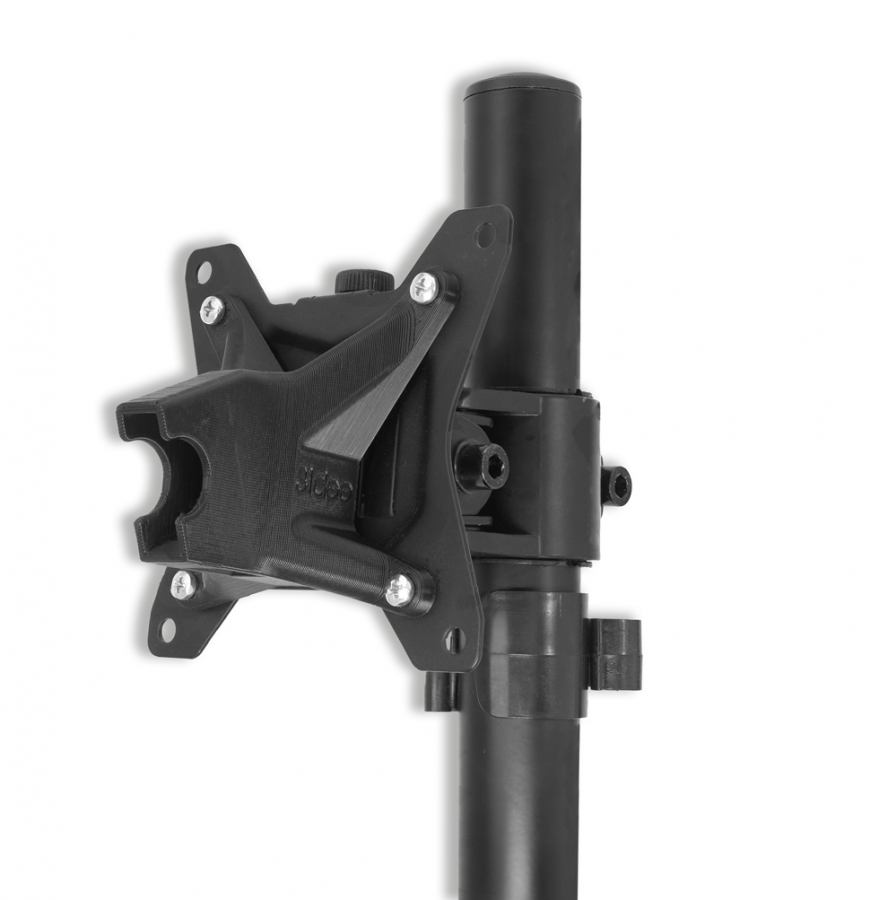

Please check again if all screws are tightened properly. (Figure 3)
Figure 3
Step 4

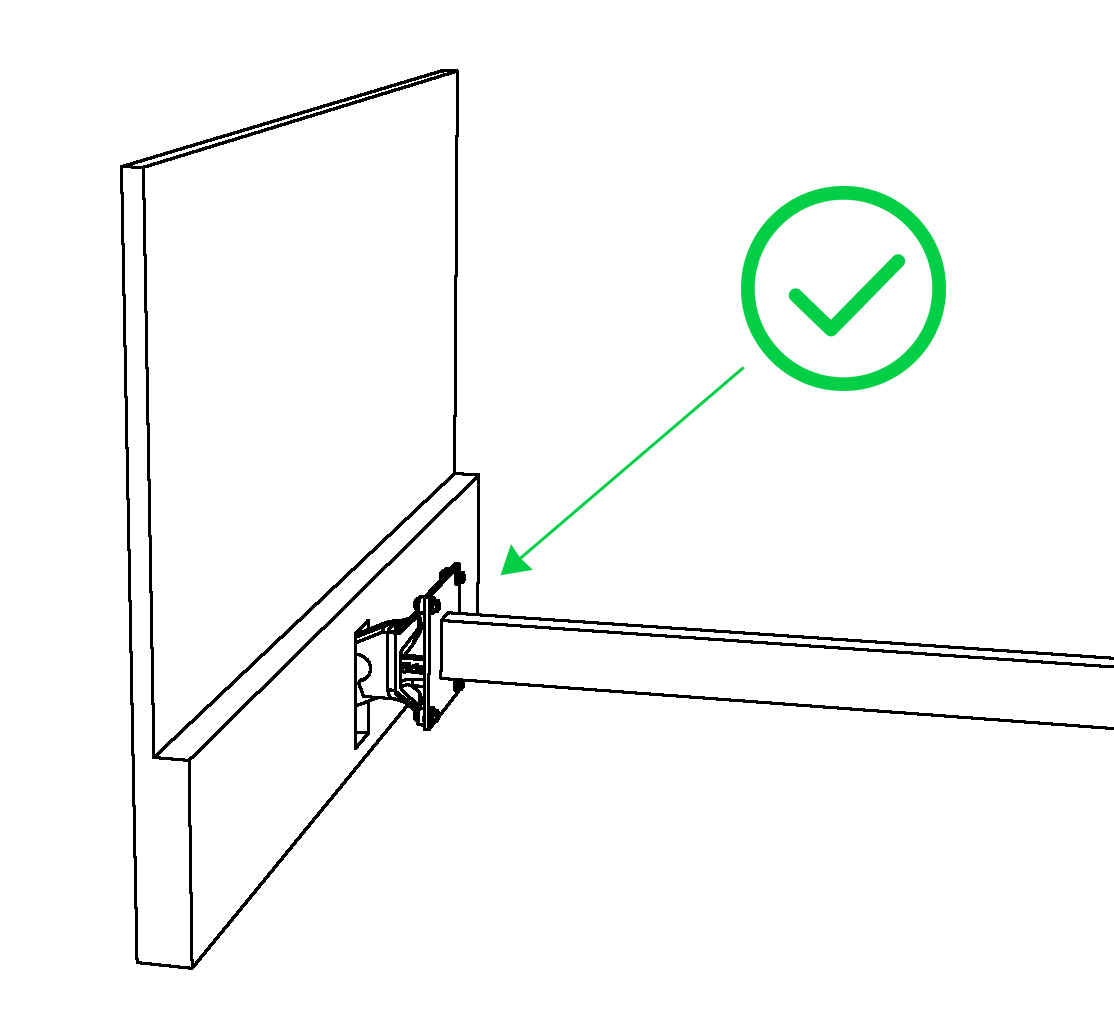

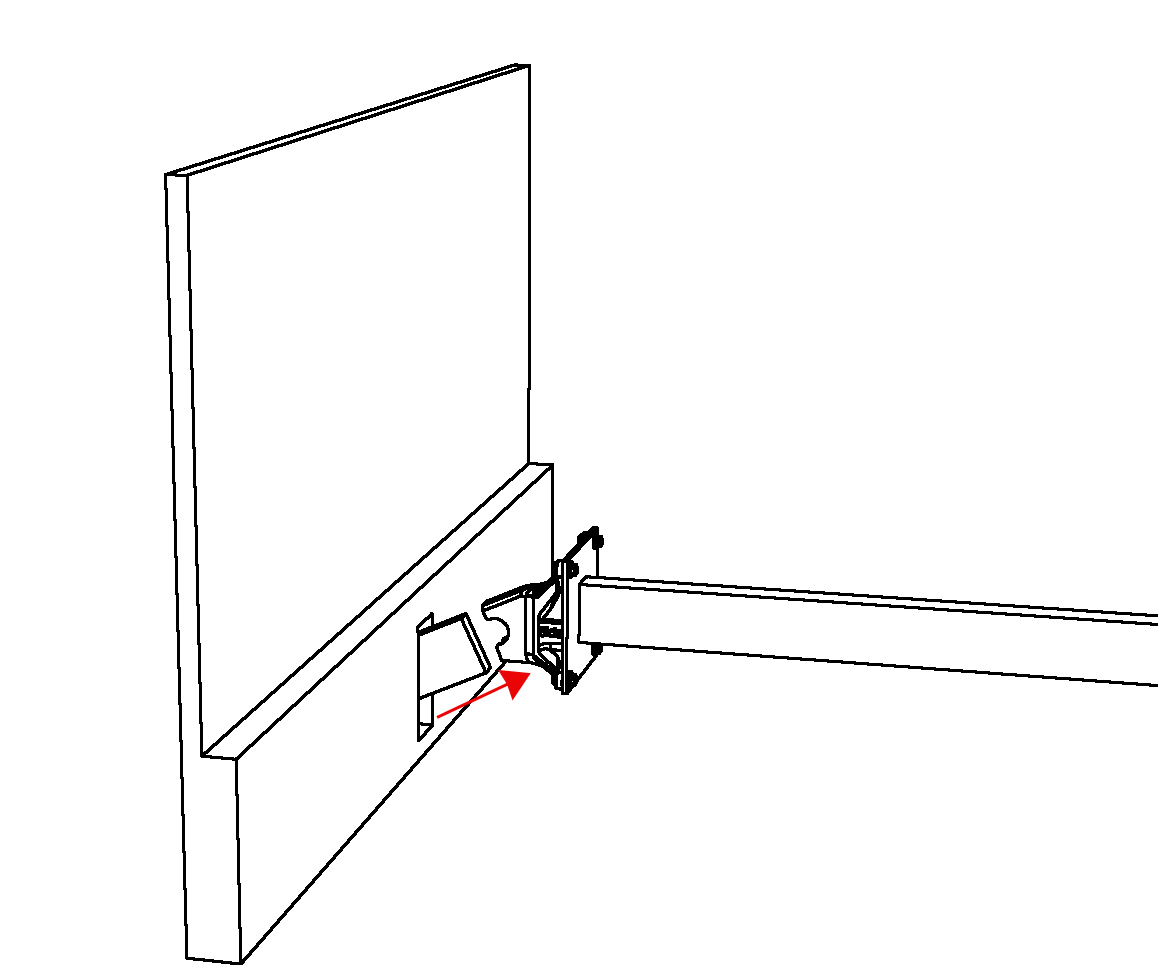

Now slide your monitor diagonally, from bottom to top into the 3idee VESA adapter. (Figure 4)
Figure 4

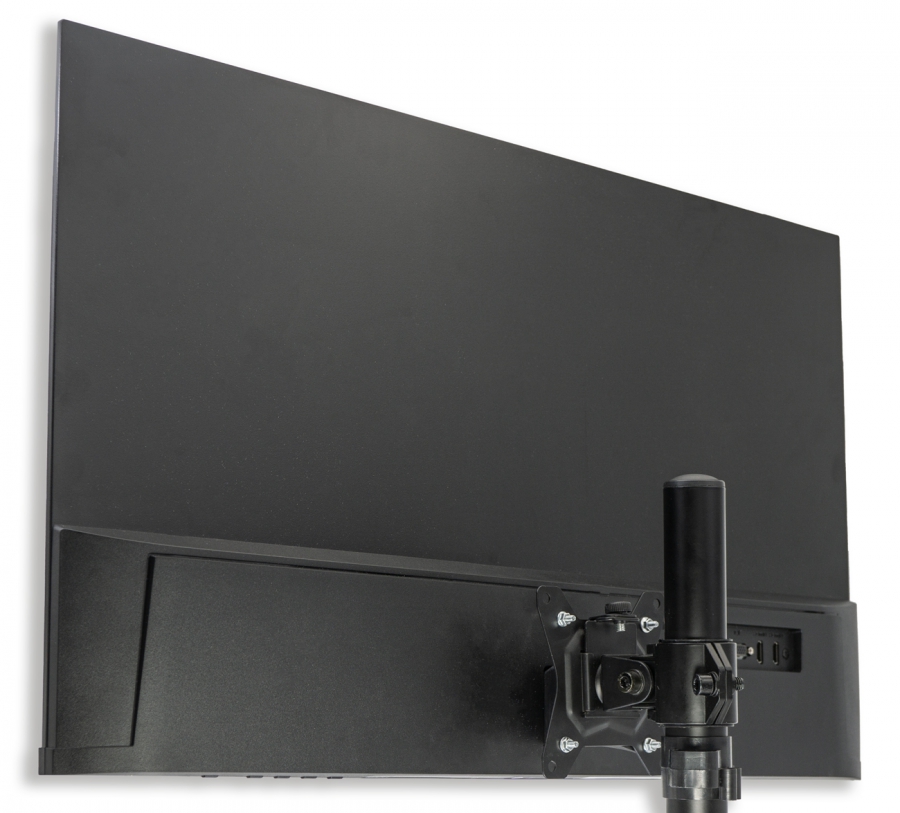

Step 5
Please check whether the monitor is correctly locked into the VESA adapter. The monitor will be able to move in the adapter despite correct mounting. This is due to manufacturing tolerances of the monitor mount, as well as us.
Nevertheless, the safety of the adapter is guaranteed by a correct engagement of the clip.
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
