Easily mount your HP monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-
Extended socket: The socket of the VESA adapter has been designed extra-long to ensure access to monitor connections, which are centrally located above the socket.
-
Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the HP 32s series adapters.
-
The 3idee - Quality Promise: Our products have been tested for longevity and durability. However, if you are not satisfied with the product, please contact us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following HP monitor series: 34f Curved.
You can find the installation instructions and technical help at www.help.3idee.eu or scan the QR code on the packaging of your adapter.
Scope of delivery: 1x VESA adapter, 6x Connection screws, 4x screws for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders.
The 3IDEE team is looking forward to your enquiry.
Table of contents
The VESA adapter is compatible with the following products from hp (hp.com): 32s.

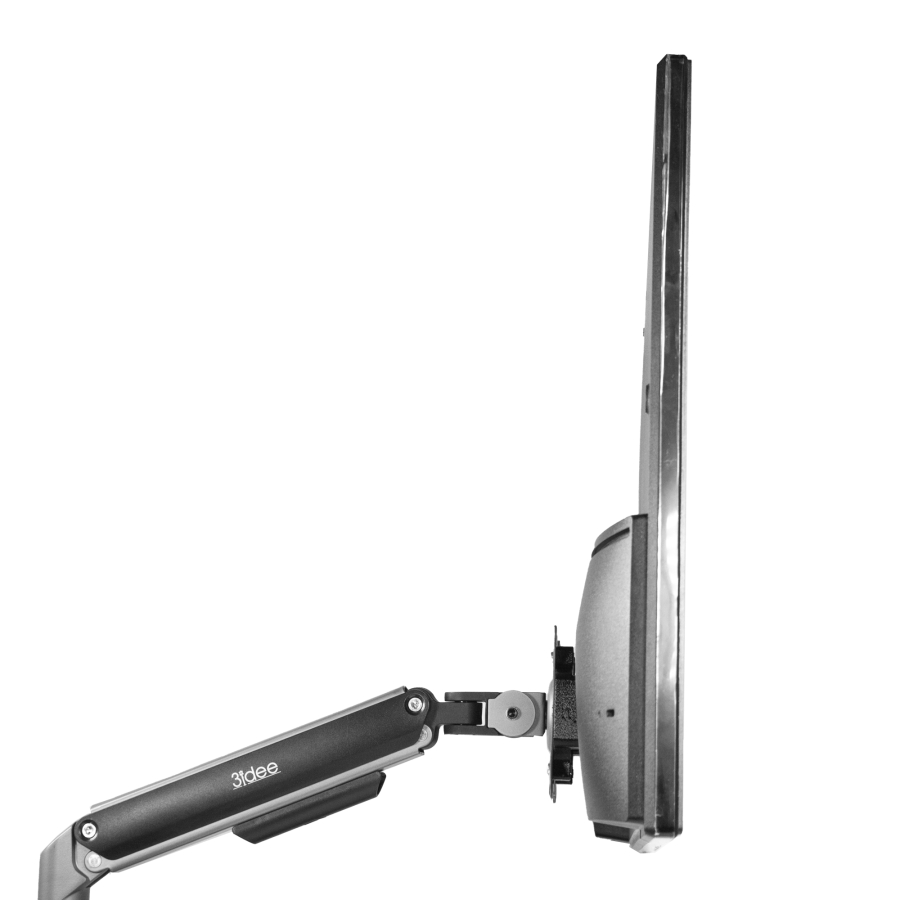

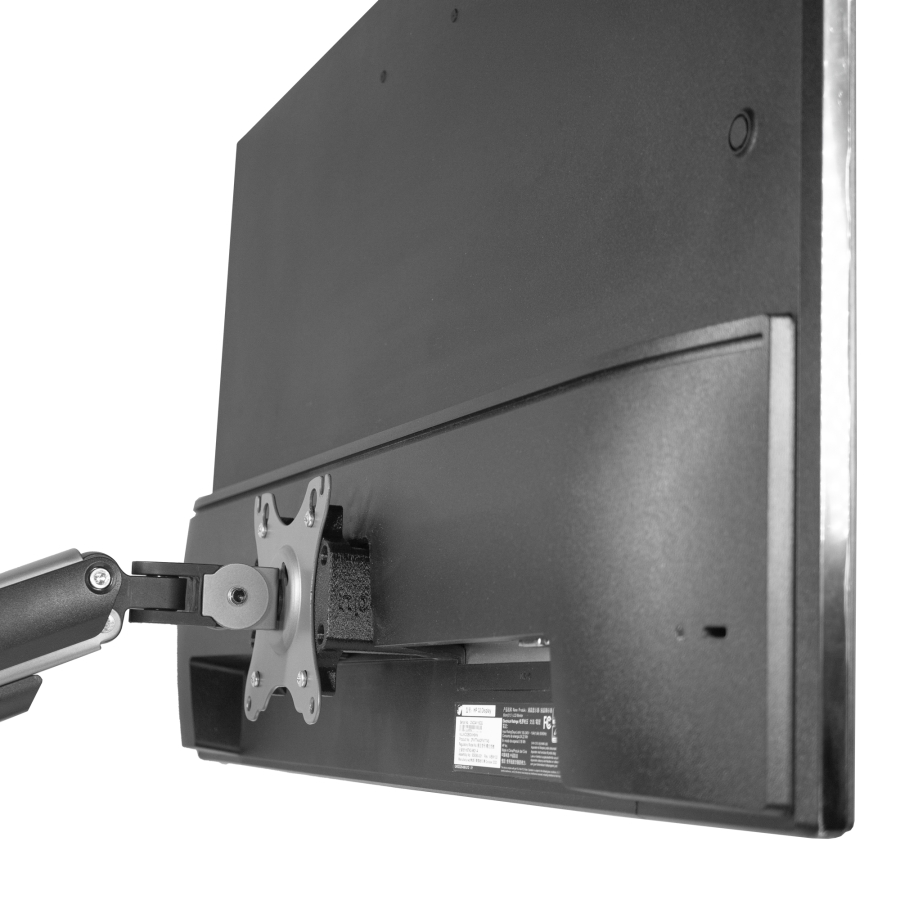

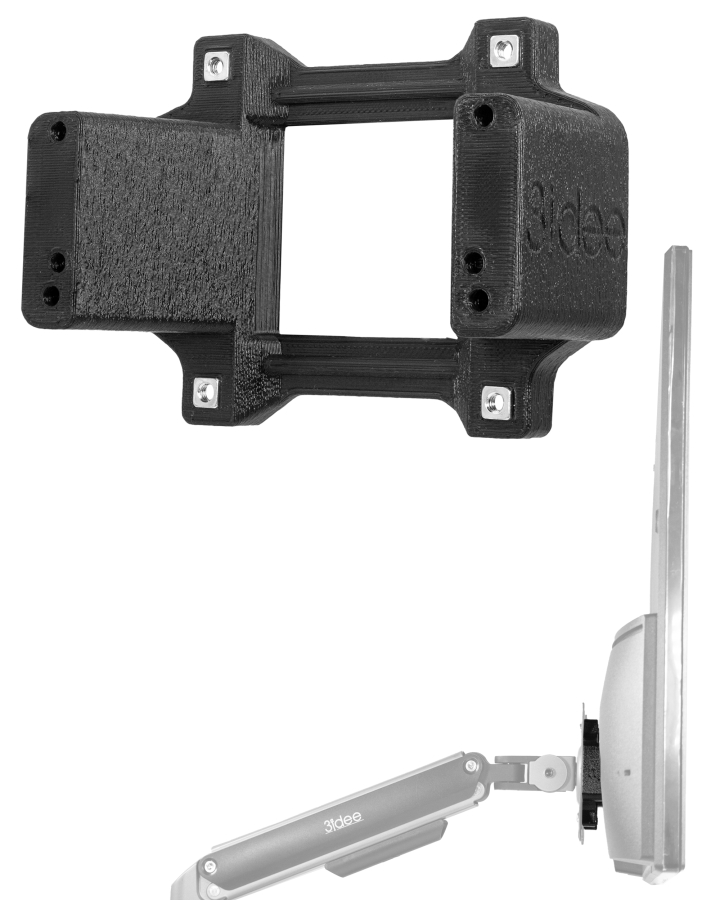

The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Step 1
Place your HP monitor securely on a soft surface.
Now remove the base of your HP monitor if it is attached.
Step 2

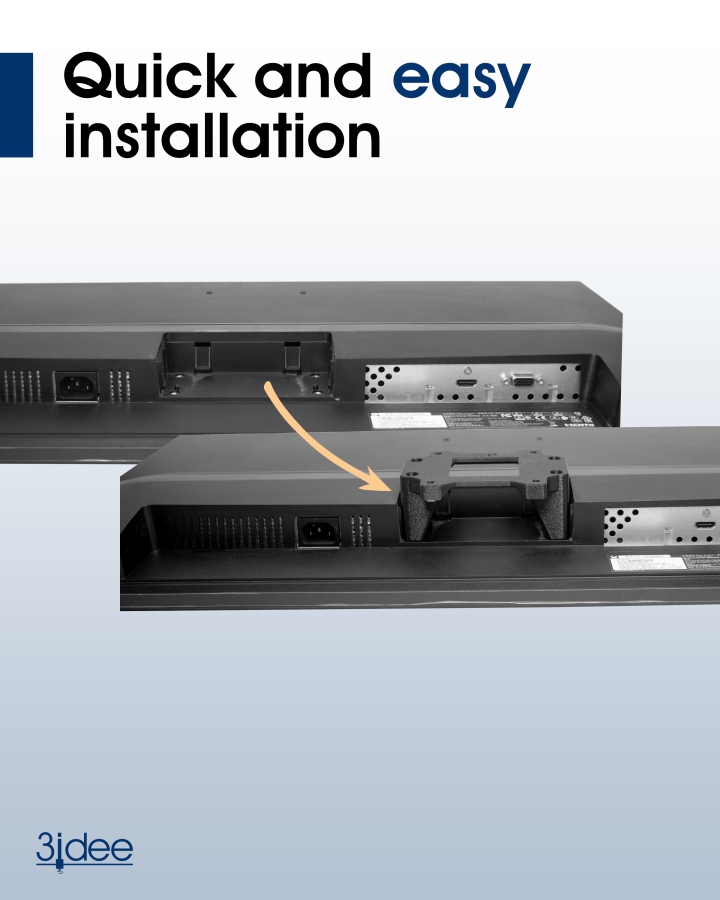

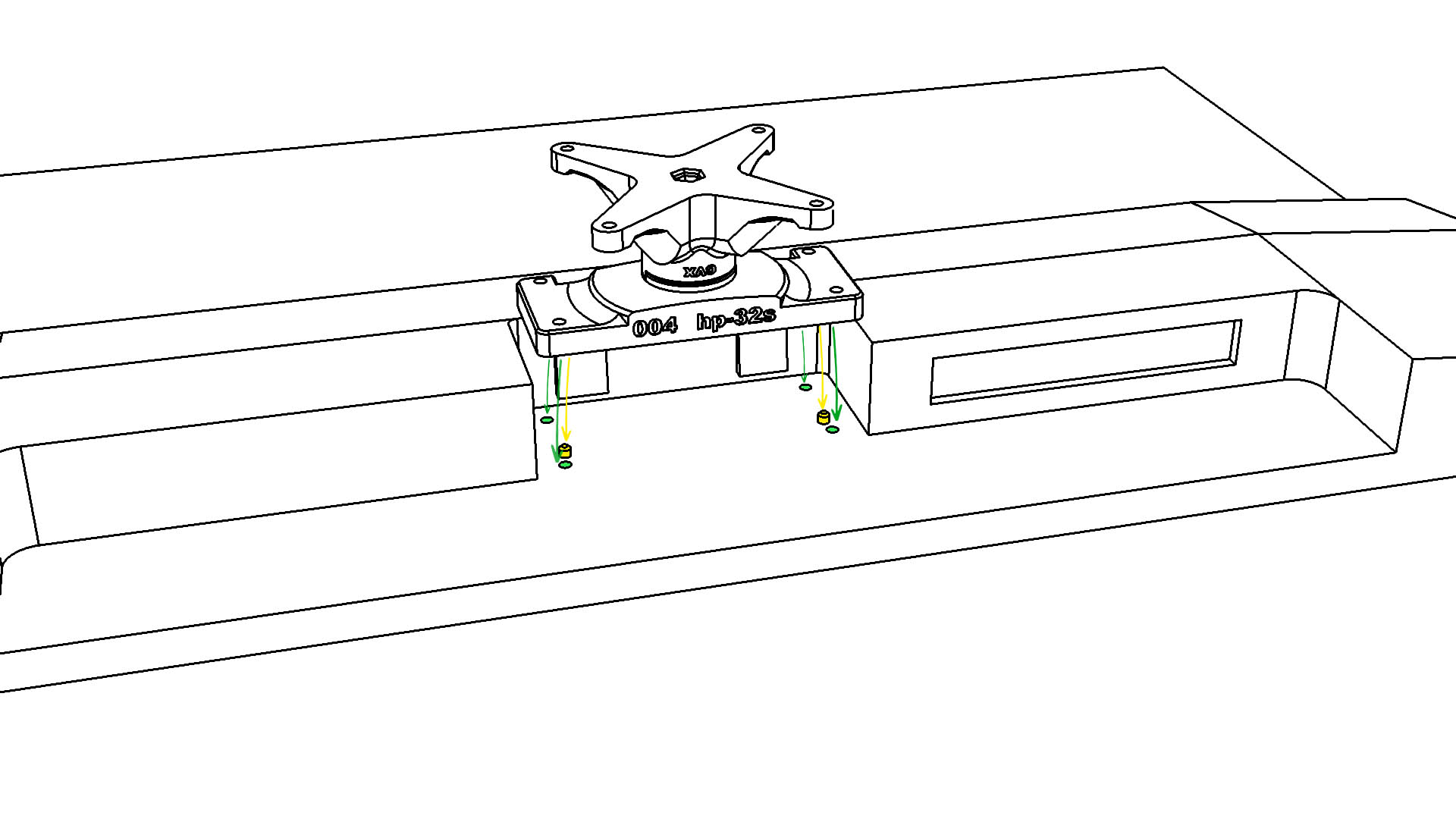

Now plug the VESA adapter onto the monitor. Here, the two pins (yellow) must connect with the adapter.
Step 3

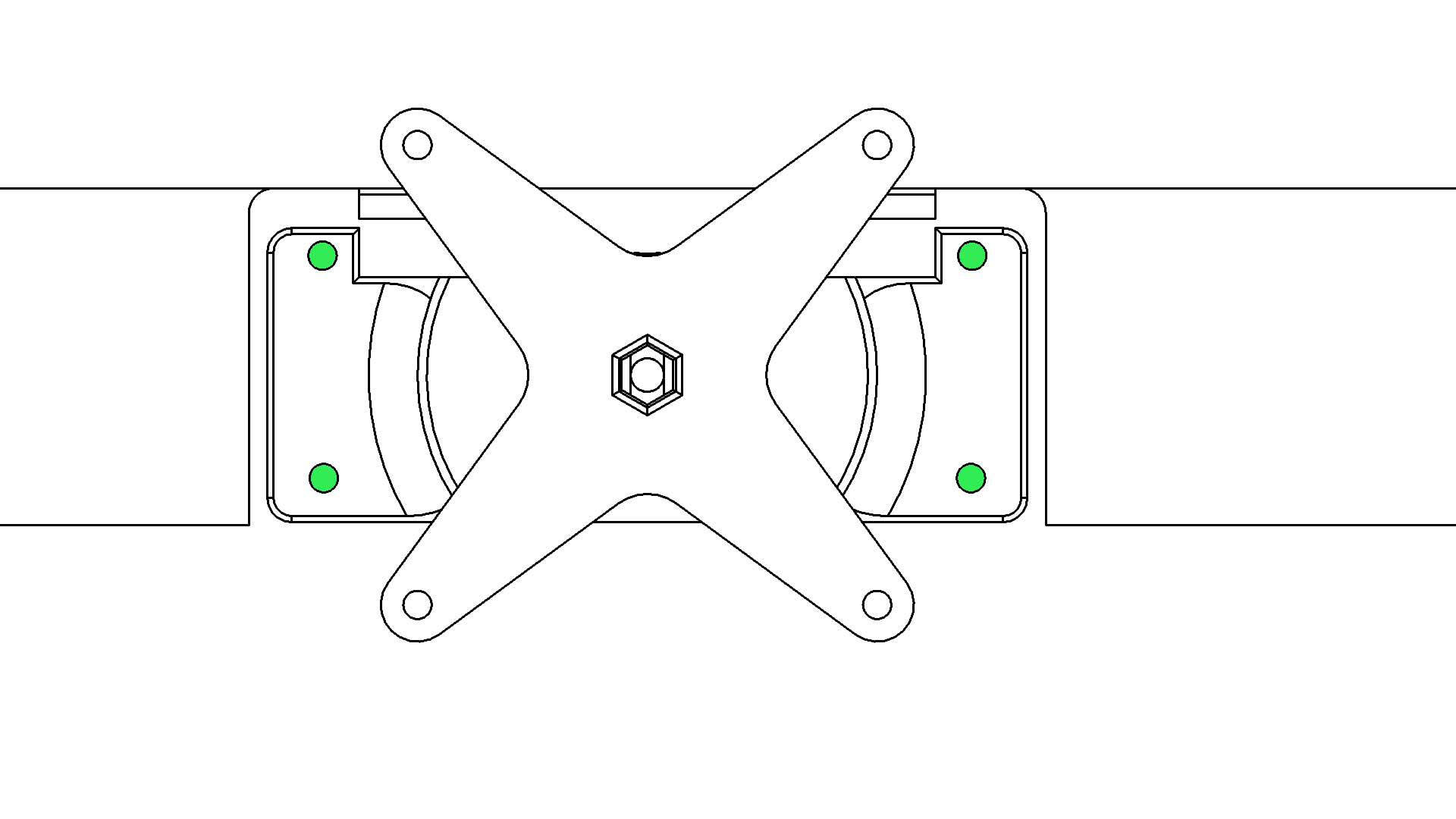

Please make sure that the adapter is plugged in the correct direction. You can see this by aligning all holes of the adapter with the holes in the monitor (green).
Step 4
Now fasten the VESA adapter with the included 4x(M4x16) screws.
ATTENTION: Use screw package A!
Step 5

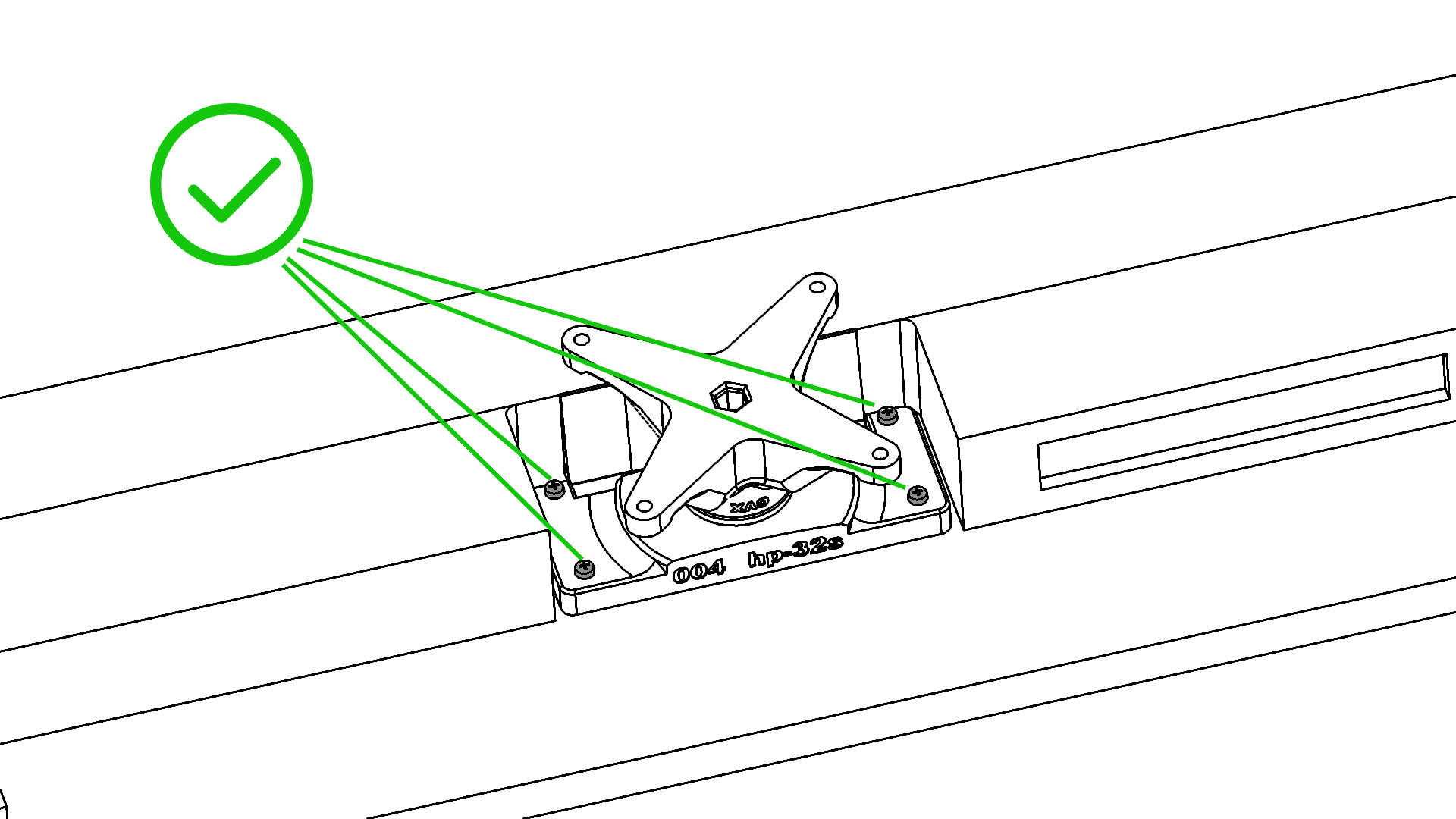

Please make sure that all 4 screws are tightened firmly.
Step 6
For this step we recommend a 2nd person.

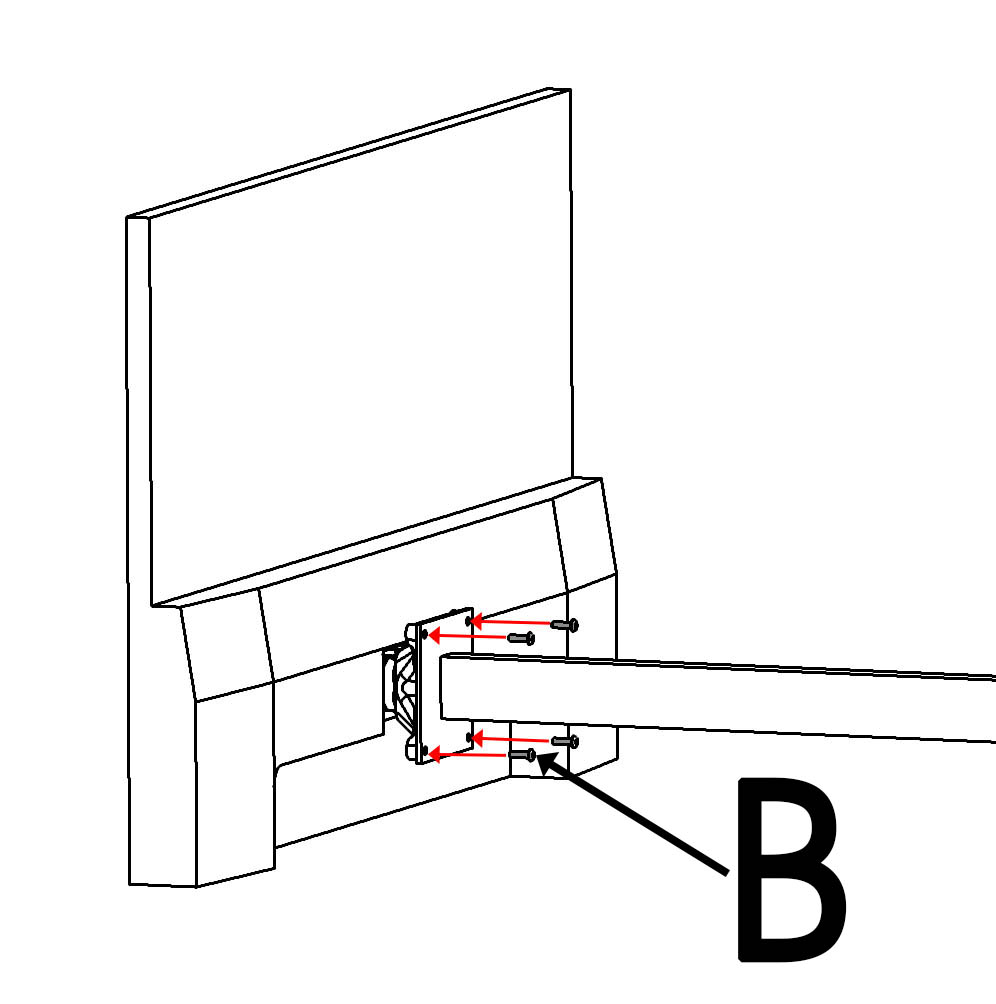

Now pick up the monitor and hold it to your VESA adapter. It is best to first fasten 2 screws diagonally, so that the monitor can no longer fall down and you can fasten the remaining screws without effort.
ATTENTION: Use screw package B!
Step 7

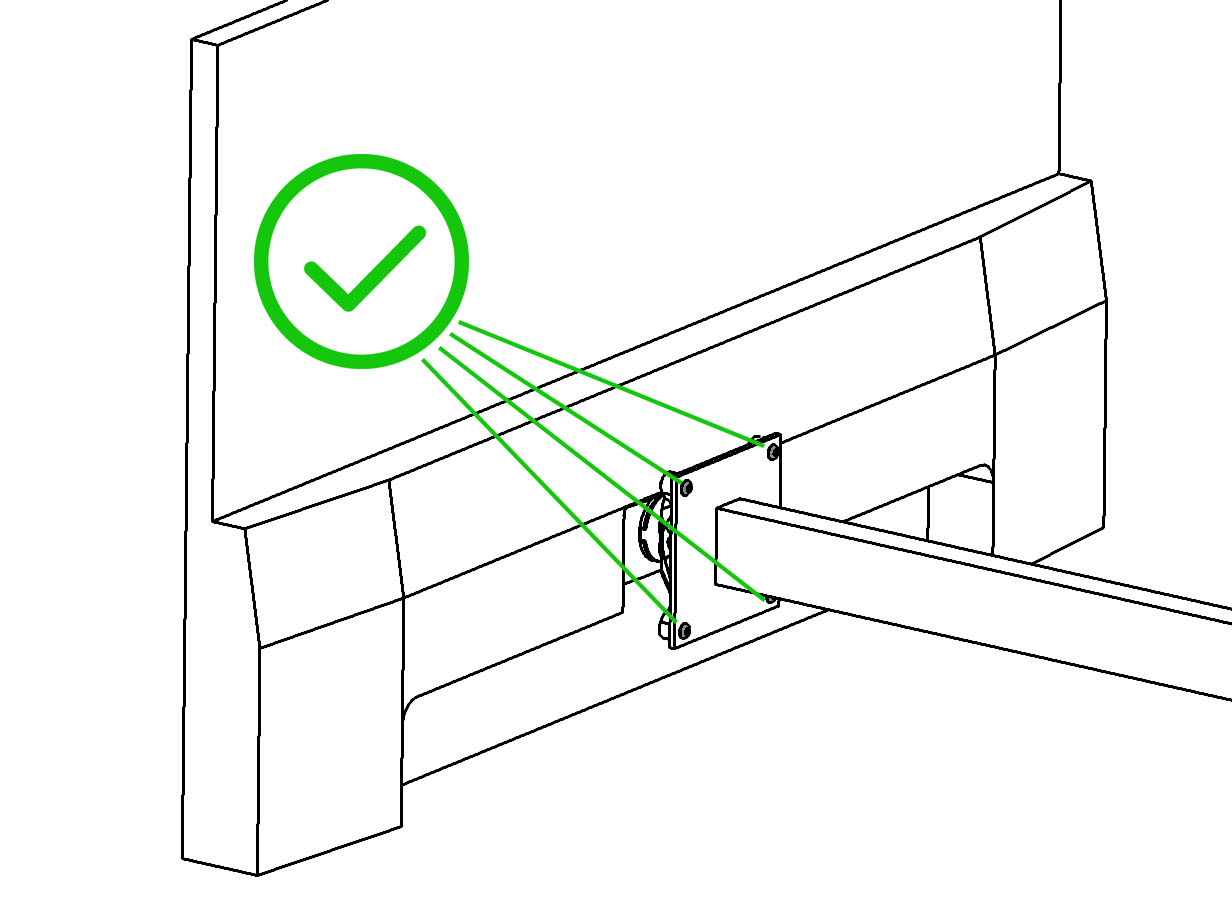

Please make sure that all 4 screws are tightened firmly.
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
