Easily mount your monitor to a wall or monitor arm.
-
Easy mounting with the included screw set.
-
Ultra Light Technology: We have designed the optimal adapter for your PC monitor using complex 3D printing processes. Maximum stability combined with minimum weight ensure perfect practicability when using the adapter. The VESA adapters from 3IDEE are up to 90% lighter than conventional metal/steel adapters and still hold many times the weight of your monitor.
-
Environmentally friendly: The adapters are not only manufactured in resource-saving lightweight construction, but also from biodegradable PLA plastic. We produce in the heart of Europe with short shipping and delivery routes. We also use 100% recycled filament for the production of the 3D printed parts of the DELL SE2417HGX series adapters.
-
The 3idee quality promise: Our adapters have been tested for longevity and durability. However, if you are not satisfied with the product please reach out to us and we will find a solution together.
Range of use: The monitor adapter is only suitable for the following DELL monitor series: S2216M, S2316H, S2316M, S2317HJ, S2416H, S2717Q, S2817Q, SE2216H, SE2416H, SE2416HSC, SE2416HX, SE2716H, SE2717H, SE2717HR, SE2717HX und SE2417HGX.
For installation instructions and technical help, please visit help.3idee.eu or scan the QR code on the packaging of your adapter.
Scope of delivery: 1x VESA adapter inlc. nuts., 4x screws for mounting.
Material and safety instructions: PLA plastic can withstand temperatures of up to approx. 50°C. Avoid placing the monitor in the immediate vicinity of heat sources such as ovens, microwaves, the blazing sun, PC exhaust air, etc.
We are constantly working on the further development of our product portfolio. Please contact us for individual enquiries and bulk orders. The 3IDEE team is looking forward to your enquiry.
--------------
Our VESA adapter is the perfect solution to mount your DELL monitor (S2216M, S2316H, S2316M, S2317HJ, S2416H, S2717Q, S2817Q, SE2216H, SE2416H, SE2416HSC, SE2416HX, SE2716H, SE2717HR, SE2717HX, SE2417HGX) to the wall or a monitor arm. With a size of 75x75mm, it is compatible with a wide range of DELL monitor models. Our high-quality adapters are made of sturdy and durable material to ensure maximum stability and durability. Easy installation with the included screw kit allows you to mount your monitor to the wall in minutes. Say goodbye to uncomfortable desk setups and enjoy the benefits of an ergonomic work environment. Order your VESA adapter compatible with DELL monitor now and experience the difference.
Table of contents
The VESA adapter is compatible with the following products from Dell (dell.com): S2216M, S2316H, S2316M, S2317HJ, S2416H, S2717Q, S2817Q, SE2216H, SE2416H, SE2416HSC, SE2416HX, SE2716H, SE2716H, SE2717HR, SE2717HX and SE2417HGX.
The VESA adapter allows you to conveniently mount your DELL brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Step 1

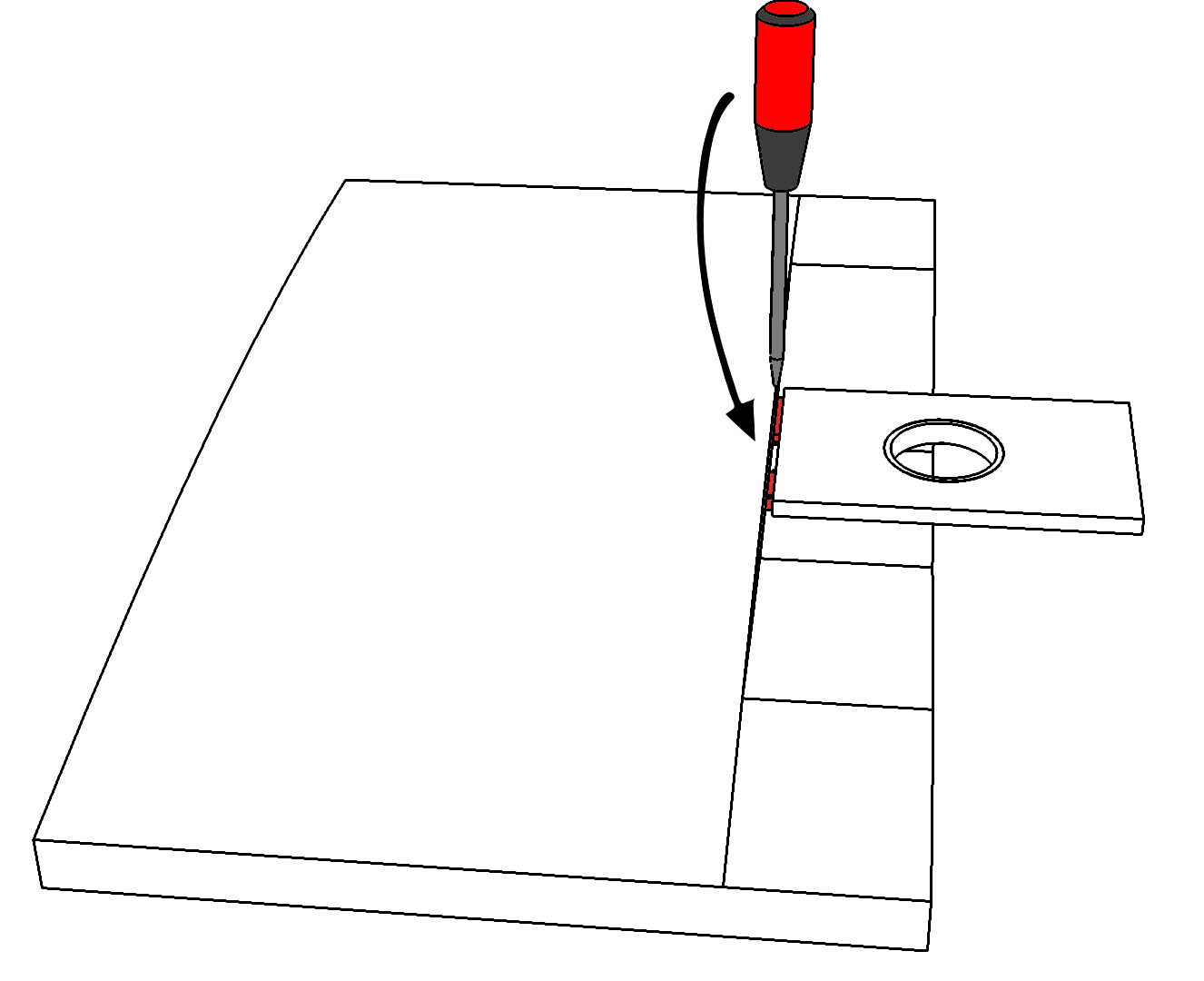

Place your screen in a safe, soft place so that your screen does not get damaged.
Remove the base of your monitor if it is already attached. Use a screwdriver and press it into the white dot above the base.
Step 2

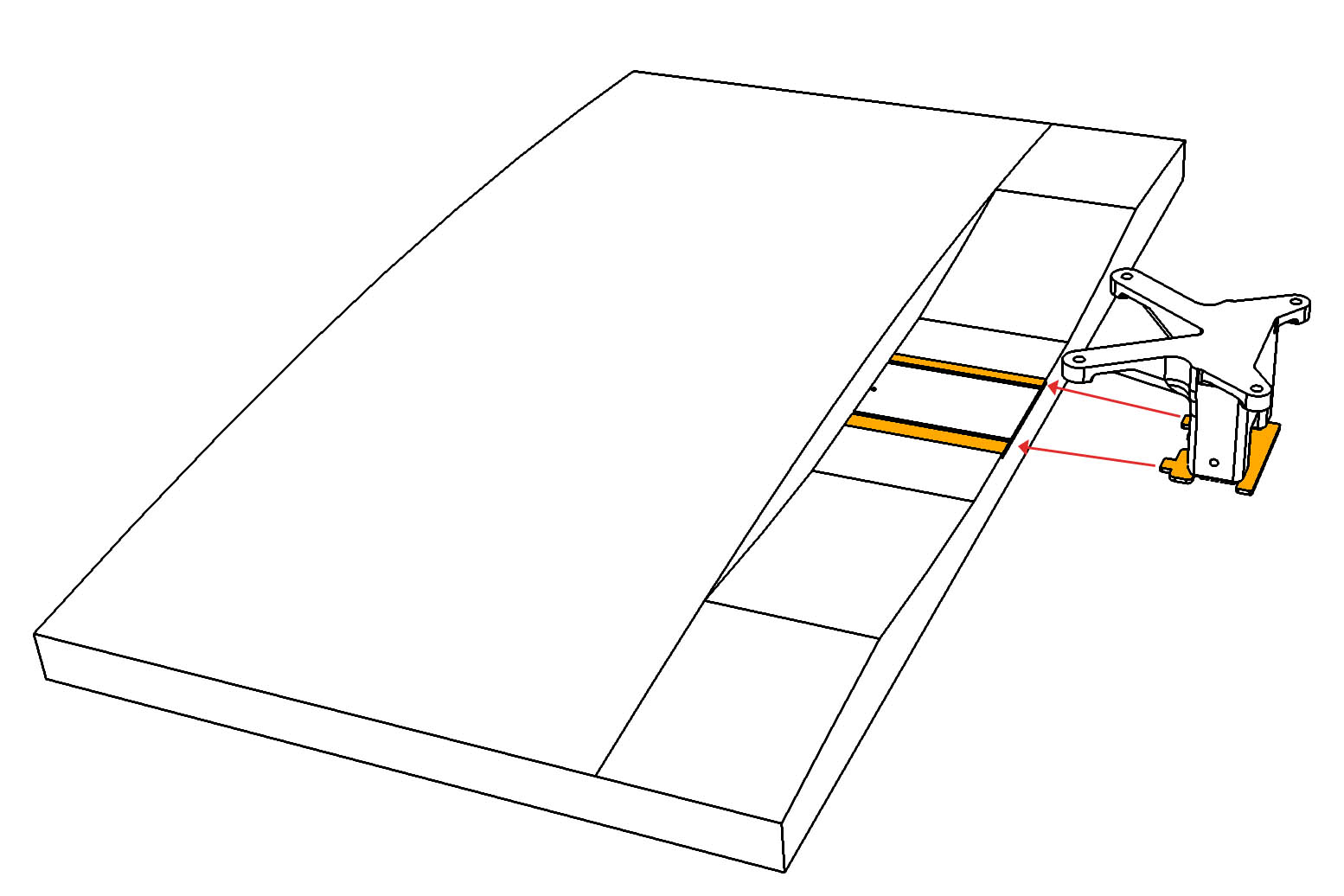

Slide the VESA adapter into the screen as shown. (Figure 1)
When you hear a "click" sound, the adapter has successfully snapped into place and is securely connected to the screen.
To check: Pull a little on your adapter to test if it is properly engaged.
Figure 1
Step 3

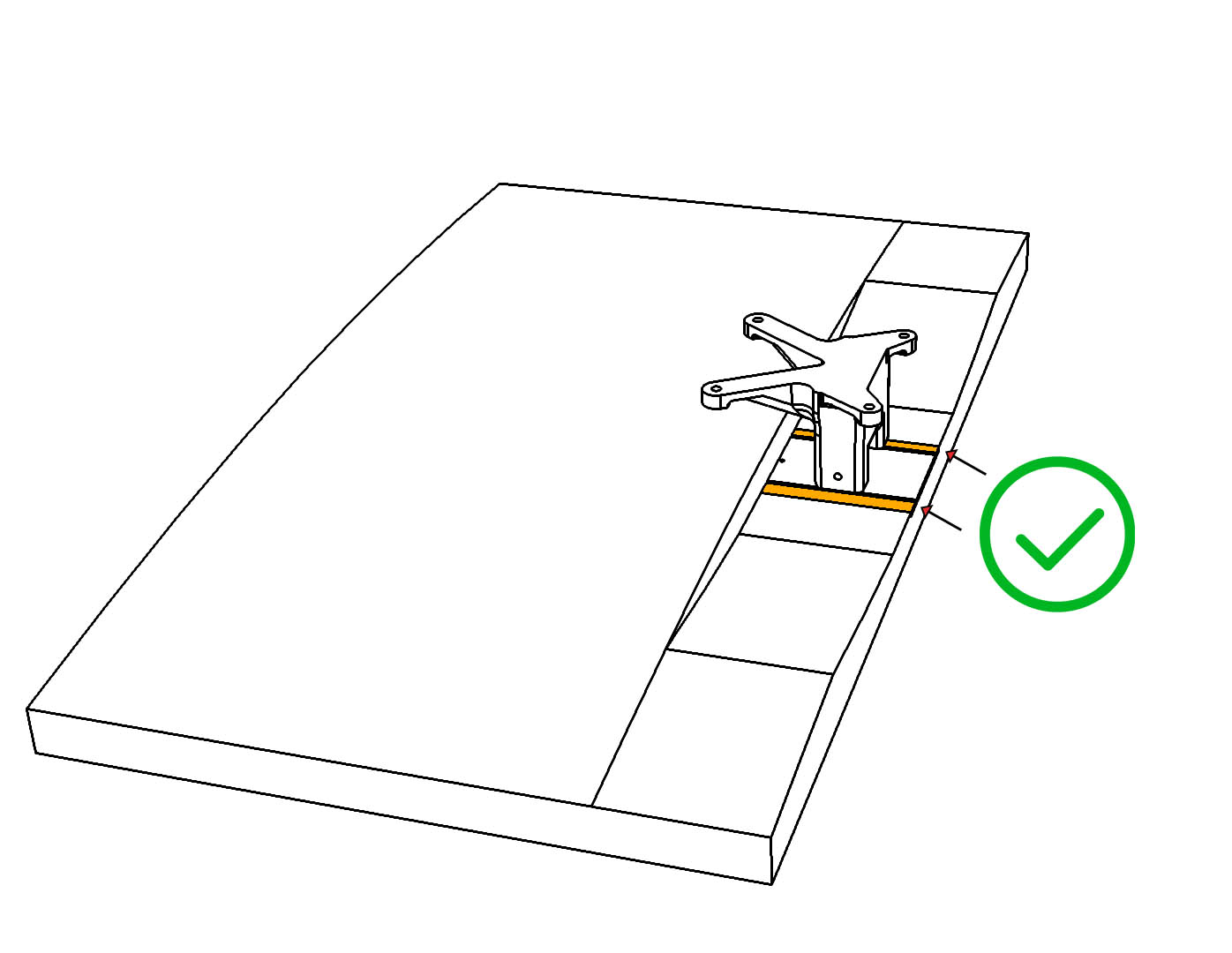

Check again if the VESA adapter is firmly connected to the monitor. (Figure 2)
Figure 2
Step 4

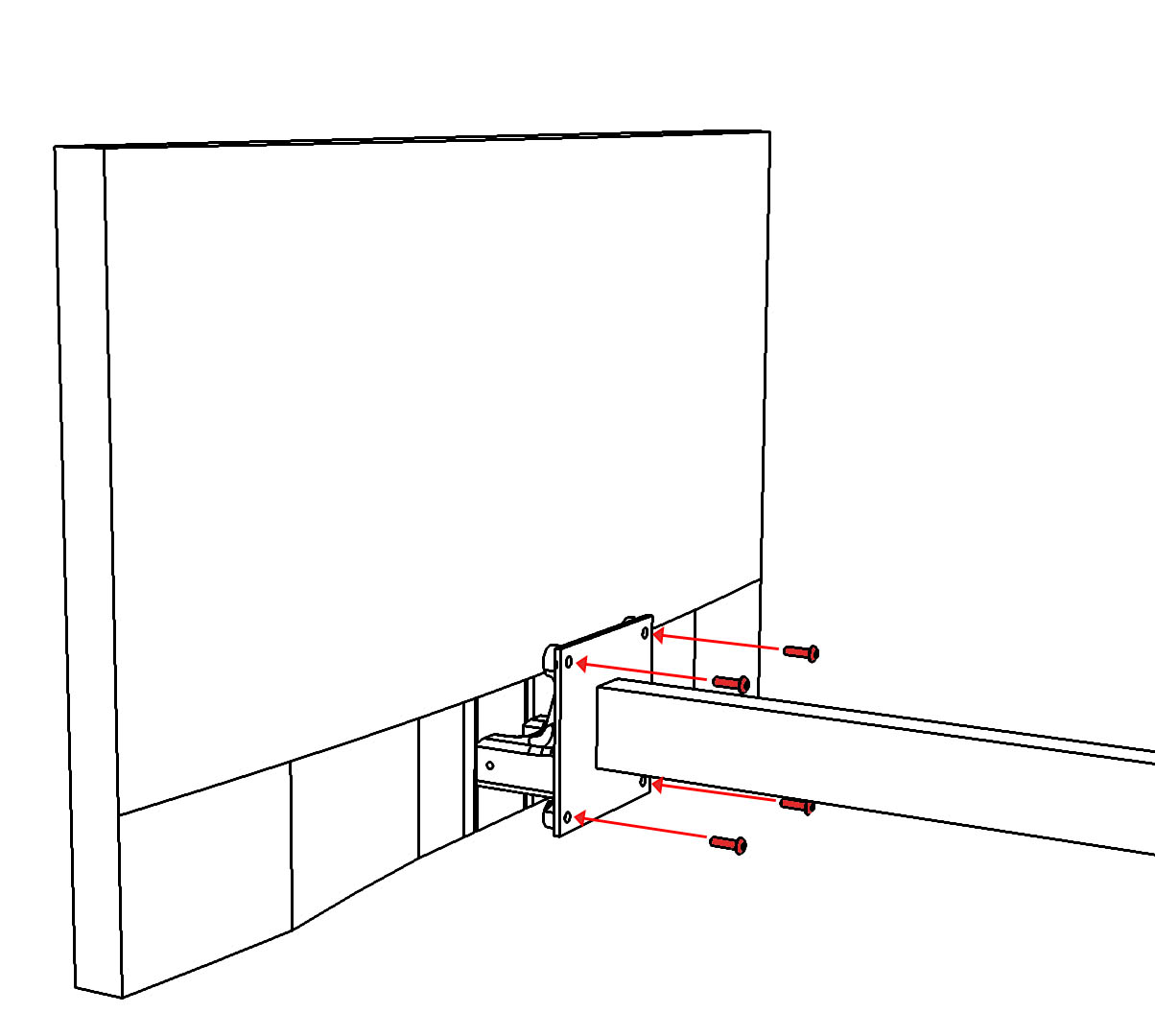

Now hold the VESA adapter on your monitor arm and screw it tight from behind with the other hand. (Figure 3)
Figure 3
Step 5
When fully assembled, it should now look as shown. (Figure 4)
Figure 4
General notes
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
Material Notes
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
